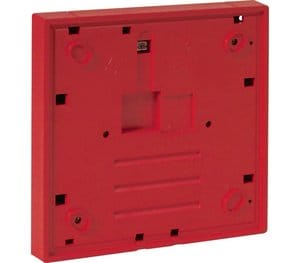

IQ8Wireless universal interface w/o cover, red

IQ8Wireless universal interface w/o cover, red

The radio interface allows the IQ8MCP (small or large design) to be connected on the wireless esserbus-PLus.

The radio interface connects the intelligent IQ8MCP to the esserbus/powered loop via the IQ8Wireless transponder or the IQ8Wireless gateway. Thus, the devices are automatically converted into individually addressable loop devices.

Part-No.:: 805601.10
Approval:: VdS

Features

Radio interface suitable for:

IQ8MCP - electronic module, large design (Part No. 804905/ 804906)
IQ8MCP – complete package, small design (Part No. 804971)
IQ8MCP - electronic module, small design (Part No. 804955), only with mounting frame (Part No. 704967)
IQ8Quad detectors (with and without alarm signaling devices)
IQ8Alarm Plus alarm signaling device

Radio interface features:

The IQ8 components are individually identified on the FACP
Regular functionality performance checks of IQ8 components
Fault signal when the IQ8 components are removed from the FACP
Operating mode display directly at the IQ8 manual call point and IQ8Quad detector
Alarm and fault message transmission in compliance with EN 54-2
Easy detector removal and battery replacement using multi-functional key
Remote operation of IQ8 components possible (max. 3 meters) via 2-wire line
Constant battery status monitoring
Early battery replacement notification at the FACP

Technical Data

Operating voltage
Operating voltage: 4 x 3.6 V batteries
Voltage supply
Quiescent current

Quiescent current @ 9 V DC
Quiescent current @ 12 V DC
Quiescent current @ 19 V DC
Alarm current @ 9 V DC
Alarm current @ 12 V DC
Current consumption: approx. 30 μA
Current consumption: mA
Current consumption @ 12 V DC
Current consumption @ 24 V DC
Battery operating time: approx. 3 years*
Power consumption
Range inside: max. 30 m
Range outside: max. 300 m
Frequency band 1: 433 MHz with 16 channels
Frequency band 2: 868 MHz with 7 channels
Transmitter power: 10 mW
Sensitivity
Data transmission speed: 19,2 Kbit/s
Battery capacity
Contact load
Contact load relay
Range
Application temperature: -5 °C ... 55 °C
Ambient temperature (Ta)
Ambient temperature
Storage temperature: -20 °C ... 70 °C
: 15 °C ... 35 °C (with batteries)
Air humidity: < 95 % (non-condensing)
Ex. protection
Type of protection: IP 42
Housing
Material: PC/ASA plastic
Installation
Color: red, similar to RAL 3020

Weight: approx. 285 g (incl. batteries, without attachment)
Weight

Cable length: m
Maximum sensor length: m
Detector specification
Alarm signal specification
EC-type examination certificate
DIBt approval
Specification: EN 54-18:2005/-25:2008

Dimensions: W: 135 mm H: 135 mm D: 20 mm (without attachment)


Declaration of Performance: DoP-20623130701

Accessories

805597 4 x 3.6 V lithium batteries

704967 Mounting frame for small MCP, red and white

805603 IQ8Wireless-mounting frames for IQ8Alarm / IQ8Alarm Plus, red and white

Additional information

Only use small manual call points with mounting frame Part No. 704967.

The batteries to be used are components of the device approval according to EN 54 and are specified by the manufacturer. With the IQ8Wireless radio components, only the approved batteries with Part No. 805597 may be used. Use of batteries other than those specified by us automatically voids the product’s device approval (VdS-approval) and may not be used for example in Germany in fire alarm systems under legal building regulations.

*The battery operating time is dependent on the type of detector/device used, as well as the application temperature and additional surrounding conditions. It can be substantially restricted by increased current consumption of the wireless devices in the case of alarm, wireless interference or poor transmission, or even possibly through contact resistance at the contacts.

Due to its nature, this article contains components classified as dangerous goods. Please clarify in advance with your forwarding agent if he accepts the transport of dangerous goods and if necessary observe the import regulations. The dangerous goods class for road transport or air transport is as follows:

UN-No. UN3091

ADR-Class 9
