IQ8Wireless detector base

IQ8Wireless detector base

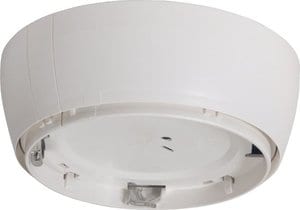

With the IQ8Wireless base, the wireless component is located in the base onto which the respective fire detector is placed. The wireless base facilitates the connection of the IQ8Quad TM, ROR, O, O²T and OTG detectors via a wireless transmission line to the esserbus/esserbus-PLus and integrates them via wireless transponder or wireless gateway into the fire alarm system.

A maximum of 32 radio bases per wireless transponder and/or 10 per radio gateway can be allocated.

Part-No.:: 805593.10
Approval:: VdS

Features

The wireless detector base suitable for

Fixed heat detector (Part No. 802171, 802177)
Rate-of-rise heat detector (Part No. 802271, 803271)
Optical smoke detector (Part No. 802371, 803371)
O²T multisensor fire detector (Part No. 802374, 803374)
OTG multisensor fire detector (Part No. 802473)

The wireless detector base features

Individual detector identification on the control panel
Regular functionality check for each detector
Alarm and operation display on the detector
Alarm and fault transmission in accordance with EN 54-2
Easy detector or battery replacement with detector removal tool
Fault signal when the mounted wireless base and the inserted detector are removed
Permanent monitoring of battery voltage

Technical Data

Operating voltage
Operating voltage: 4 x 3.6 V batteries
Voltage supply
Quiescent current

Quiescent current @ 9 V DC
Quiescent current @ 12 V DC
Quiescent current @ 19 V DC
Alarm current @ 9 V DC
Alarm current @ 12 V DC
Current consumption: approx. 50 µA
Current consumption: mA
Current consumption @ 12 V DC
Current consumption @ 24 V DC
Battery operating time: approx. 3 years*
Power consumption
Range inside: max. 30 m
Range outside: max. 300 m
Frequency band 1: 433 MHz with 16 channels
Frequency band 2: 868 MHz with 7 channels
Transmitter power: 10 mW
Sensitivity
Data transmission speed: 19.2 Kbit/s
Battery capacity
Contact load
Contact load relay
Range
Application temperature: -5 °C ... 55 °C
Ambient temperature (Ta)
Ambient temperature
Storage temperature: -20 °C ... 70 °C
: 15 °C ... 35 °C (with batteries)
Air humidity: < 95 % (non condensing)
Ex. protection
Type of protection: IP 42
Housing
Material: ABS-V0
Installation
Color: white, similar to RAL 9010

Weight: approx. 315 g (incl. batteries)
Weight

Cable length: m
Maximum sensor length: m
Detector specification
Alarm signal specification
EC-type examination certificate
DIBt approval
Specification: EN 54-18:2005/-25:2008

Dimensions: Ø: 135 mm H: 49 mm (with detector H: 88 mm)


Declaration of Performance: DoP-20622130701

Additional information

The batteries to be used are components of the device approval according to EN 54 and are specified by the manufacturer. With the IQ8Wireless radio components, only the approved batteries with Part No. 805597 may be used. Use of batteries other than those specified by us automatically voids the product’s device approval (VdS-approval) and may not be used for example in Germany in fire alarm systems under legal building regulations.

*The battery operating time is dependent on the type of detector/device used, as well as the application temperature and additional surrounding conditions. It can be substantially reduced by increased current consumption of the wireless devices in the case of alarm, wireless interference or poor transmission, or even possibly through contact resistance at the contacts.

Due to its nature, this article contains components classified as dangerous goods. Please clarify in advance with your forwarding agent if he accepts the transport of dangerous goods and if necessary observe the import regulations. The dangerous goods class for road transport or air transport is as follows:

UN-No. UN3091

ADR-Class 9
