Features
- Reversible door hinge
- Completely detachable

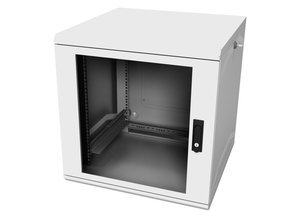

19" - housing for VARIODYN D1 Comprio (incl. assembly)
19“ - housing for VARIODYN D1 Comprio, but including assembly of voice alarm components and smaller accessories.
- Part-No.:
- 584913.R
- Approval:
- Part of EN 54-16 approval
Technical Data
- Transmission range
- System input impedance
- Harmonic distortion at nominal level
- Ambient temperature
- Storage temperature
- Air humidity
- Air humidity
- Weight
- Weight
- Dimensions
- Declaration of Performance
- DoP-00376130701
Accessories
584923 Sliding rail, set 550 mm for 800 mm upright cabinets
Additional information
Cables not included in price and must be ordered separately!
Scope of delivery
Base frame with depth-adjustable 19"level on the front and rear side, prefabricated with a 105 mm clearance to the doors
Front door with a 4 mm ESG pane (parsol gray)
Rear door steel plate
Door lock with a swivel lever for 40 mm PHZ and multi point locking
Removable side walls, lockable
Three-part base plate, passively ventilated
Roof with a brush strip and cover plate, prefabricated for the fan assembly
Cabinet completely grounded
