Features
- Reversible door hinge
- Completely detachable

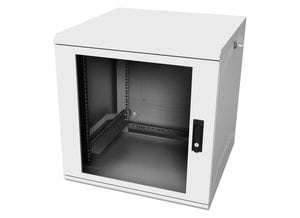

19“- housing for VARIODYN D1 Comprio
Housing for PA/VA small system Comprio without swivel frame. Housing can be used as free standing housing or for wall mounting. It is 12 HU high and an area of 600 mm x 600 mm and serves for acceptance of Comprio control unit; a four-channel amplifier 4XD125B or 4XD250B with built in emergency power supply, corresponding batteries (up to 105 Ah) and a ventilation field. Furthermore there are 2 or 3 height units (corresponding which amplifier is used), e.g. for the installation of additional components such as recording units. If more space is needed, another 19" Rack from our upright cabinet line can be used.
- Part-No.:
- 584913
- Approval:
- Part of EN 54-16 approval
Technical Data
- Rated voltage
- V AC
- Input-Clipping
- Verzerrung bei -3dB unter Nennleistung (ohmsche Last)
- Indication Output voltage
- Alle Kanäle auf Batterienennspannung geladen
- Alle Kanäle werden mit Netznennspannung geladen
- Betriebsarten
- Frequency
- Versorgungsspannung_a
- Eigenschwingungsfrequenz im Ruhezustand
- Effizienz bei maximaler Last
- Eingangsimpedanz (symmetrisch)
- Eingangsempfindlichkeit
- Spannungsverstärkung
- Maximale Tragfähigkeit
- Verzerrung bei Nennleistung (ohmsche Last)
- Frequenzgang bei Nennleistung
- Vorgang Klasse D
- Temperaturkompensationsfaktor für Batterieladegerät
- Schutz vor tiefer Batterieentladung
- Starten des Ladegeräts
- Impedanz der Batteriequelle
- Strombegrenzung des Batterieladegeräts
- Kapazität der ventilgeregelten Blei-Säure-Batterie
- Zulassung/Zertifizierung VDE, Semko (EN 60934)
- Isolationswiderstand
- Stehspannung Prüfspannung
- Shutdown
- Operating life
- Kontrolllampe
- Rated current
- Signal Rausch Verhältnis
- Frequenzbereich_fr
- kHz
- Leitungsspannung
- Lautsprecher_Line_Modul
- Spitzenspannungswiderstand
- max_Schaltkontaktstrom
- max_Schaltkontaktspannung
- Lastimpedanz min.
- SNR
- THD
- max_Ausgangspegel_FR
- Audio Ausgangskanäle
- Ausgabetype
- Max. Power per module
- Audio latenzy
- Output channels
- Audio Transmission Format
- Ethernet
- Output impedance
- Frequency response
- Nominal output level
- Audio output:
- Interference Voltage DistanceLine
- Interference voltage ratioMicrophone
- frequency response line
- frequency response microphone
- Nominal line input level
- Nomminal input levvel microphone
- audio input channels
- Short-circuit proof against + 24 V
- load current per output
- input resistance
- input voltage logical 0
- input voltage 1
- Input voltage
- audio storage
- Encoder/Decoder
- Sampling rate
- Voltage supply
- Power consumption
- Max. external voltage
- V DC
- Voltage of loudspeaker output
- Max. number of lines per moduel
- Max Power per line
- Max. number of modules per INC
- Operation temperature
- Channel separation
- Distortion factor @ 1 kHz
- Approval
- Efficiency
- Signal to noise ratio
- Input level
- Output power *8
- Current (1 kHz sinus/1 min.) @ 24 V DC *7
- Rated current @ 230 V AC *6
- Rated current @ 24 V DC*6
- Rated frequency
- Emergency power supply
- V DC
- Technology
- Operating voltage
- V DC
- Operating voltage
- Current consumption @ 12 V DC
- Current consumption @ 24 V DC
- Power consumption
- W
- Rated voltage
- Output voltage
- V AC
- Output current
- A
- Contact load relay
- Data transmission speed
- Transmission distance
- Transmission range
- System input impedance
- Channel separation
- dB
- Harmonic distortion at nominal level
- Sensitivity
- mV
- Sound level
- dB
- Impedance
- Ω
- Fiber
- Ambient temperature
- Storage temperature
- Air humidity
- Air humidity
- Type of protection
- Housing
- Color
- Mounting
- Weight
- Weight
- approx. 29 kg
- Dimensions
- W: 600 mm H: 610 mm D: 600 mm
- Declaration of Performance
- Output current (idle)
- Output current (alarm)
- Emergency power supply
Accessories
584923 Sliding rail, set 550 mm for 800 mm upright cabinets
Scope of delivery
Base frame with depth-adjustable 19"level on the front and rear side, prefabricated with a 105 mm clearance to the doors
Front door with a 4 mm ESG pane (parsol gray)
Rear door steel plate
Door lock with a swivel lever for 40 mm PHZ and multi point locking
Removable side walls, lockable
Three-part base plate, passively ventilated
Roof with a brush strip and cover plate, prefabricated for the fan assembly
Cabinet completely grounded
