Features
- EN 54-16 certified
- Two analog audio inputs/outputs
- 48 contacts freely programmable as inputs and outputs
- Digital Audio link (DAL) to DOM

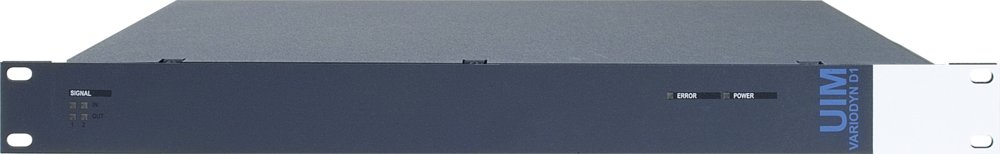

Universal Interface Module UIM
The universal interface module serves as the interface module of the VARIODYN D1 public address system for connecting two analog audio inputs, two analog audio outputs, as well as 48 control contacts. For eight control contacts, short-circuit and interruption monitoring can be activated.The UIM is connected to the VARIODYN D1 module DOM via the DAL bus.It digitizes two analog audio inputs, i.e. from a CD player or a hazard detection system, and transmits the digitized audio data to the VARIODYN D1 module DOM via the DAL bus. In order to transmit all played messages to an external device, for instance, two outputs are available as analog audio sources. The 48 contacts can serve as contact inputs or as contact inputs. This allows for an external control of the VARIODYN D1 system, and information about the status of the system is made available.
- Part-No.:
- 583331.21
Technical Data
- Audio output:
- Nominal level
- 0 dBu
- Transmission range
- 20 Hz ... 22000 Hz
- Signal/Noise ratio
- Harmonic distortion at nominal level
- 0,05 %
- Output impedance
- 200 Ω / 200 Ω (XLR / Cinch, potential free)
- Audioinput:
- Input type
- Nominal level
- 0 dBu
- Transmission range
- 20 Hz ... 22000 Hz
- 0.050000000 %
- Signal/Noise ratio
- System input impedance
- Common technical data:
- Operating voltage
- V DC
- Current consumption @ 24 V DC
- mA
- Current consumption @ 24 V DC
- 150 mA
- Quiescent current @ 24 V DC
- Inputs
- Outputs
- 36 V DC/50 mA
- Ambient temperature
- -5 °C ... 55 °C
- Storage temperature
- Air humidity
- < 93 % (non-condensing)
- Air humidity
- Type of protection
- Housing
- Color
- Weight
- Weight
- approx. 3,6 kg
- Dimensions
- W: 483 mm H: 44 mm D: 345 mm (1 HE, 19")
- Declaration of Performance
Accessories
583401.21 Signal cable12 for UIM
583481A Patch cable CAT5, 1 m blue (DAL)
583482A Patch cable CAT5, 2 m blue (DAL)
583483A Patch cable CAT5, 3 m blue (DAL)
583703 Mounting set 1
583332 Overvoltage protection module for UIM-contacts
