Enclosure for one firefighter paging microphone and one DKM

Enclosure for one firefighter paging microphone and one DKM

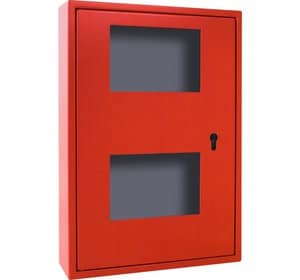

Wall enclosures made of sheet steel for holding one firefighter paging microphone DCSF12 (Part No. 583503.RE) or DCSF (Part No. 583504.RE) and one DKM18 (Part No. 583306.21) in the original enclosure. Additionally you should order an installation kit (Part No. 583507) for each DCS/DKM.

Part-No.:: 584962

Features

Powder coated in red, similar RAL 3000
Door with 2 viewing windows 180 x 120 mm with acrylic glass cover
Prepared to include fire closure
Internal mounting plate for installation of the DCS/DKM
6 Cable entries on rear wall of housing
2 Cable entries on the upper and lower housing - and –bottom side respectively
2 Cable entries right and left of housing respectively
2 Mounting brackets for LWL-Converter type. Part No. 583317.21 in housing

Technical Data

Audio output:
Power consumption
Operating voltage
Übertragungsbereich
Spezifikation
Output type
Nominal level: dBu
max. Outputlevel: dBu
Transmission range
Harmonic distortion at nominal level
Signal/Noise ratio
Output impedance
Audioinput:
Input type
Nominal level: dBu
Transmission range

Signal/Noise ratio
Common technical data:
Operating voltage: V DC
Current consumption @ 24 V DC: mA
Microphone
Swan-neck: mm
Transmission range
Loudspeaker
Sample rate: kHz
AD/DA converter: Bit
Current consumption: mA
Wavelength: nm
Range: m
Range: km
FO-Connector
Ambient temperature
Storage temperature
Air humidity
Air humidity
Type of protection
Housing
Color: red, similar to RAL 3000

Weight
Weight: approx. 8,4 kg

Dimensions: W: 350 mm H: 500 mm D: 100 mm


Declaration of Performance

Accessories

584963 Profile half-cylinder with standard closure

Scope of delivery

Housing including accessory kit with 8 screws for assembly of the callstations.

The callstations are sold separately.
