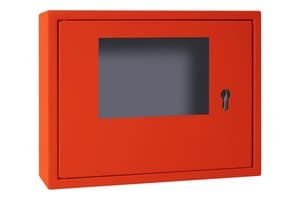

Enclosure for a firefighter paging microphone DCSF

584961 | Enclosure for a firefighter paging microphone DCSF

Wall enclosure manufactured out of sheet steel for the inclusion a firefighter paging microphone DCSF12 (Part No. 583503.RE) or DCSF (Part No. 583504.RE) in the original enclosure. Additionally you should to order an installation kit (Part No. 583507 for each DCS/DKM).

Part-No.:
584961

Features

  • Powder coated in red, similar RAL 3000
  • Door with a viewing window 180 x 120 mm with acrylic glass cover
  • Internal mounting plate for installation of the DCS
  • 3 cable entries on rear wall of housing
  • 2 cable entries on the upper and lower housing - and –bottom side respectively
  • A cable entry on the right and left of the housing
  • A mounting bracket for fiber optic converter Part No. 583317.21 in the housing

Technical Data

Audio output:
Power consumption
Operating voltage
Übertragungsbereich
Spezifikation
Output type
Nominal level
dBu
max. Outputlevel
dBu
Transmission range
Harmonic distortion at nominal level
Signal/Noise ratio
Output impedance
Audioinput:
Input type
Nominal level
dBu
Transmission range

Signal/Noise ratio
Common technical data:
Operating voltage
V DC
Current consumption @ 24 V DC
mA
Microphone
Swan-neck
mm
Transmission range
Loudspeaker
Sample rate
kHz
AD/DA converter
Bit
Current consumption
mA
Wavelength
nm
Range
m
Range
km
FO-Connector
Ambient temperature
Storage temperature
Air humidity
Air humidity
Type of protection
Housing
Color
red, similar to RAL 3000

Weight
Weight
approx. 4,8 kg

Dimensions
W: 350 mm H: 265 mm D: 100 mm


Declaration of Performance

Accessories

584963 Profile half-cylinder with standard closure

Scope of delivery

Housing including a pack with 4 screws for the installation of the call station.

This call station is not included in the scope of the delivered package.

Downloads

Produktdatenblatt
Ausschreibungstext

Product Data Sheet

Version: 2024-12
