PC Touch Screen Call Station

583560 | PC Touch Screen Call Station

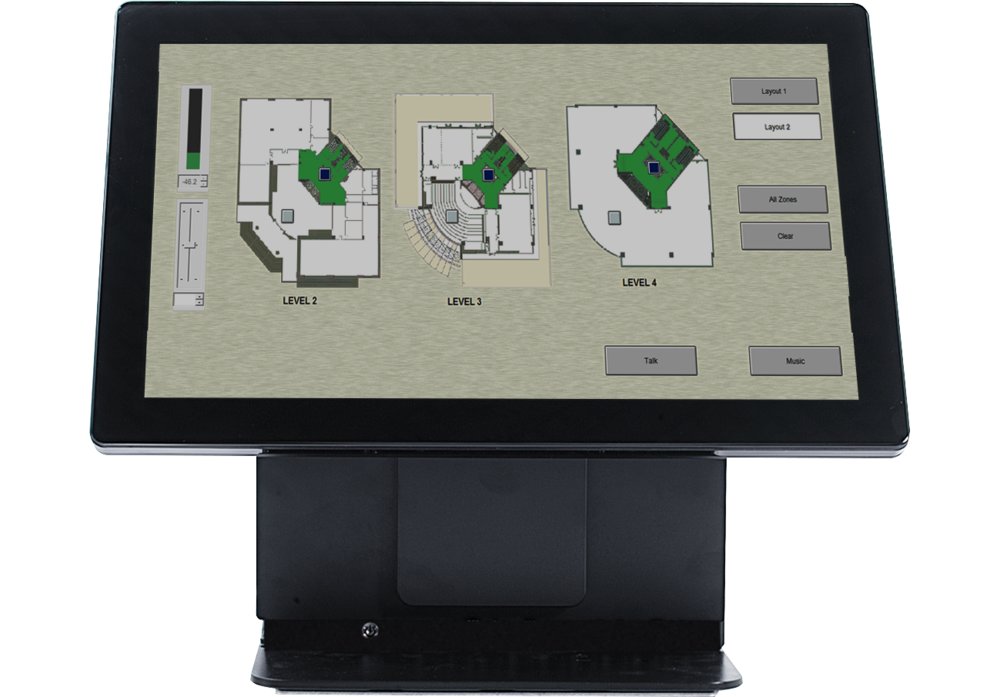

An elegant touch screen solution, designed for use in front of house environments or complex buildings. Combined with the PAMMI plus software the user has an intuitive tool for creating announcements with graphical display of the site and zones.The sleek yet durable call station delivers a

15-inch touchscreen, Intel Celeron dual-core processor, 2 GB RAM and

320 GB storage.

Designed to fit on top of an office desk, reception desk, information desk or gate desk.With no moving parts to wear out, touch response is fast, accurate, and drift free using a finger or soft stylus. Pure glass construction allows high light transmission, ensuring good visibility in bright light environments, without compromising durability or functionality.The first class gooseneck microphone with cardioid characteristics is perfect for noisy environments. With the high grade cable it is possible to place the microphone remotely from the call station hardware, allowing for the user to create a comfortable working environment.

Part-No.:
583560

Features

  • Zero-bezel model provides a seamless, edge-to-edge design for a sleek appearance that is easy to clean and provides maximum display space
  • Pure glass touchscreen for optimal picture quality is factory sealed to resist spills, dust and grease
  • Durable to withstand the rigors of use in a public environment
  • Dynamic gooseneck microphone with on/off switch
  • Sennheiser CL2- line cable between Call Station and Microphone

Technical Data

Audio output:
Power consumption
Operating voltage
Übertragungsbereich
Spezifikation
Output type
Nominal level
dBu
max. Outputlevel
dBu
Transmission range
Harmonic distortion at nominal level
Signal/Noise ratio
Output impedance
Audioinput:
Input type
Nominal level
dBu
Transmission range

Signal/Noise ratio
Common technical data:
Operating voltage
V DC
Current consumption @ 24 V DC
mA
Microphone
Swan-neck
mm
Transmission range
Loudspeaker
Sample rate
kHz
AD/DA converter
Bit
Current consumption
mA
Wavelength
nm
Range
m
Range
km
FO-Connector
Ambient temperature
0 °C ... 35 °C
Storage temperature
Air humidity
< 20 %
Air humidity
Type of protection
Housing
Color

Weight
Weight
approx. 7,3 kg

Dimensions
W: 390 mm H: 330 mm D: 161 mm


Declaration of Performance

Accessories

583654 PAMMI Plus small installations

583561 PC with touch screen

583565 Dynamic swanneck microphone

Additional information

Intel Celeron Processor, Intel HD Graphics, 2 GB RAM, Windows POS Ready OS, 1 x line out, 2 x line in, 1 x Gigabit LAN

Downloads

Produktdatenblatt
Ausschreibungstext

Product Data Sheet

Version: 2024-12

Language:
English
Doc extension:
pdf
