Fire Brigade Call Station DCSF7

583505.RE | Fire Brigade Call Station DCSF7

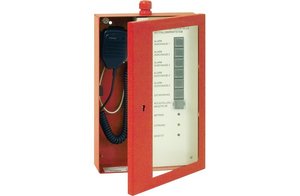

The Digital Fire Brigade Call Station DCSF7 serves to dial and start pre-configured alarm text messages and to broadcast voice announcements by the fire brigade.

This call station is designed for the use in Austria. The buttons are labeled in German language, but can easily be replaced in local language

The Digital Fire Brigade Call Station DCSF7 is used along with ENS VARIODYN D1 and contains a hand-held microphone with talk button, operation/display elements and an inbuilt loudspeaker for acoustic microphone monitoring and the acoustic error message to be broadcast.

All other features, including the redundant cabling are as per the DCS and DSCF call stations.

Part-No.:
583505.RE

Features

  • Five freely-programmable buttons for alarms
  • One freely configurable button for the all-clear signal
  • One button for resetting/acoustics
  • Three integrated LED (Operation, Fault, Occupied)
  • Hand-held microphone with cardioid characteristics and PTT talk button
  • Optional fiber optic connection for distances of up to 2000 m
  • EN 54-16 certified

Technical Data

Audio output:
Power consumption
Operating voltage
Übertragungsbereich
Spezifikation
Output type
Nominal level
dBu
max. Outputlevel
dBu
Transmission range
Harmonic distortion at nominal level
Signal/Noise ratio
Output impedance
Audioinput:
Input type
Nominal level
dBu
Transmission range

Signal/Noise ratio
Common technical data:
Operating voltage
24 V DC
Current consumption @ 24 V DC
mA
Microphone
Manual microphone, cardioid characteristic,Push-To-Talk (PTT) button
Swan-neck
mm
Transmission range
200 Hz ... 12500 Hz
Loudspeaker
Sample rate
48 kHz
AD/DA converter
24 Bit
Current consumption
150 mA
Wavelength
nm
Range
m
Range
km
FO-Connector
Ambient temperature
-5 °C ... 55 °C
Storage temperature
Air humidity
< 93 % (non-condensing)
Air humidity
Type of protection
Housing
Color
red, similar to RAL 3000 (housing)

white, similar to RAL 9002 (key pad)
Weight
Weight
approx. 2 kg

Dimensions
W: 200 mm H: 300 mm D: 55 mm


Declaration of Performance
DoP-20997130701

Accessories

583316.21 LWL-Converter-Central

583317.21 LWL-Converter-communication unit

583318 Replacement-Key caps (VPE 12 pieces)
