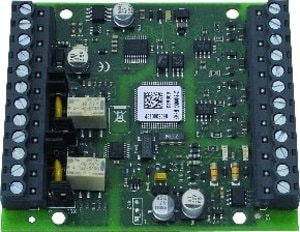

The alarm transponder for VARIODYN D1 provides each 2 supervised relay outputs for optical alarm signaling devices to provide alarms to people in very noisy areas or to deaf people. It works independently, is driven by the VARIODYN D1 and this message to the VARIODYN D1 is reported in case of failure of the relay line.The transponder is installed with in the cabinet of VARIODYN D1.
For the installation of the alarm transponder for VARIODYN D1, the following case is available as an option:
-788603.10 (For DIN rail mounting in the enclosure cabinet or stand)The power supply of the alarm transponder via the system's 24 V DC.
The alarm transponder is attached to the DOM and UIM or VARIODYN D1 Comprio.
Per relay line can be connected up to 10 visual alarm devices.
The visual alarm, refer to the fire alarm systems catalog.
CWST-RR-S5 W Beacon red-red LED
CWST-WW-S5 W Beacon white-white LED
CWST-WA-S7 Signal beacon white-amber lens
582550 Flameproof beacon with 10 joule
582551 Flameproof beacon with 15 joule
