Features
- Only one loop address is needed per transponder
- Max. 100 transponders per FACP
- Max. 31 transponders per loop
- Max. 32 transponders per detector zone

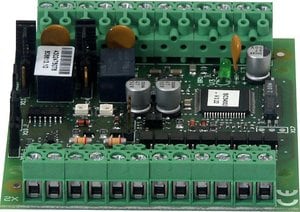

esserbus transponder SIE for 3rd party extinguishing panels
The esserbus transponder SIE is designed for operation as Standard Interface Extinguishing (SIE) for the analog loop (esserbus / esserbus-PLus) of the Fire Alarm System 8000, IQ8Control and FlexES Control.An external power supply of 12 V DC or 24 V DC can be connected to the esserbus transponder. The voltage converter (Part No. 781336) is required for 12 V DC operation. The transponder’s external voltage supply can be programmed with supervision.
- Part-No.:
- 808613.30
- Approval:
- VdS
Technical Data
- Rated voltage
- V AC
- Rated voltage
- Operating voltage
- 10 ... 28 V DC
- External power supply
- Rated frequency
- Rated current
- A
- Quiescent current
- Quiescent current @ 12 V DC
- approx. 10 mA
- Quiescent current @ 19 V DC
- Alarm current @ 12 V DC
- Alarm current
- Current consumption
- max. 120 mA
- Current consumption
- Current consumption @ 12 V DC
- Current consumption @ 24 V DC
- Contact load relay
- 30 V DC/1 A
- No. of detector/zone
- Operation indicator
- Alarm display
- Connection terminal
- Application temperature
- Ambient temperature
- -10 °C ... 50 °C
- Storage temperature
- -25 °C ... 75 °C
- Air humidity
- < 95 %
- Air humidity
- Type of protection
- IP 40 (with housing)
- Housing
- Color
- Weight
- approx. 28 g
- Weight
- Dimensions
- W: 82 mm H: 72 mm D: 20 mm
- Declaration of Performance
- DoP-20614130701
Accessories
788603.10 Module housing for C-mounting bar or top hat rail mounting
788600 Housing surface mount, gray
788650.10 Housing surface mount, white
788601 Housing flush mount, gray
788651.10 Housing flush mount, white
788612 Loop isolator PCB
781336 DC/DC converter output voltage
Scope of delivery
1 x Additional equipment pack with 3.3 k and 680 R terminating resistor for SST
