Features
- Only one loop address is needed per transponder
- Max. 100 transponders per FACP
- Max. 32 transponders per loop
- Max. 32 transponders per detector zone
esserbus transponder 32 LED

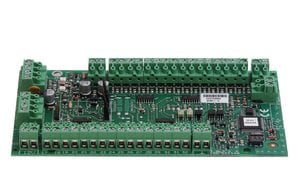

The esserbus transponder works as a loop device on the multi-functional primary line. This esserbus transponder module has 32 outputs for direct LED control (e. g. tableau). For each output, a terminal screw is provided on the switching mechanism. The outputs can be used plus or minus switching (by programming). On a loop a max. of 32 esserbus transponder can be connected. By mounting the additional isolator board (Part No. 788612) this device can be extended. The esserbus transponder requires an external power supply.
The external power supply of the transponder can be monitored and programmed in the operating mode. The maximum cable length from transponder to the external device is up to 100 m.
- Part-No.:
- 808611.10
- Approval:
- VdS, BOSEC
Technical Data
- Rated voltage
- V AC
- Rated voltage
- Operating voltage
- 10 ... 15 V DC
- External power supply
- Rated frequency
- Rated current
- A
- Quiescent current
- Quiescent current @ 12 V DC
- approx. 3 mA
- Quiescent current @ 19 V DC
- Alarm current @ 12 V DC
- Alarm current
- Current consumption
- Current consumption
- Current consumption @ 12 V DC
- Current consumption @ 24 V DC
- Contact load relay
- No. of detector/zone
- Operation indicator
- Alarm display
- Connection terminal
- Application temperature
- Ambient temperature
- -10 °C ... 50 °C
- Storage temperature
- -25 °C ... 75 °C
- Air humidity
- < 95 %
- Air humidity
- Type of protection
- IP 40 (with housing)
- Housing
- Color
- Weight
- approx. 95 g
- Weight
- Dimensions
- W: 150 mm H: 82 mm D: 20 mm
- Declaration of Performance
- DoP-20611130701
Accessories
788612 Loop isolator PCB
788600 Surface mounting housing gray, similar to RAL 7035
788650.10 Surface mounting housing white, similar to RAL 9003
788601 Flush mounting housing gray, similar to RAL 7035
788651.10 Flush mounting housing white, similar to RAL 9003
Additional information
Monitored triggering according to EN 54 not possible
Operation on a FlexES Control or Compact FACP only in conjunction with voltage converter Part No. 781336.
