Features
- Only one loop address is needed per transponder
- Max. 100 transponders per FACP
- Max. 32 transponders per loop
- Max. 32 transponders per detector zone

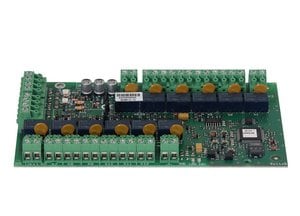

esserbus transponder 12 relays (8 bit)
The esserbus transponder works as a loop device on the multi-functional primary line. With the 12 relays module, it is possible to expand the number of control zones per control unit. Depending on the control unit, it can be integrated or used with fire detectors in mixed operation. The esserbus transponder can be optionally extended by adding the additional isolator board Part No. 788612. esserbus transponder voltage supply: via the multi-functional primary line. The esserbus transponder can be wired with an external switching voltage of 12V DC or 24V DC for the K1 to K12 relays. The external voltage supply of the transponder can be programmed to be monitored in the customer data in the operating mode. In the “floating” operating mode, no external switching voltage of the relays is necessary. 11 relays are freely programmable. The maximum line length from the transponder to the external device is up to 1000 m.
- Part-No.:
- 808610.10
- Approval:
- VdS, BOSEC
Technical Data
- Rated voltage
- V AC
- Rated voltage
- Operating voltage
- 10 ... 28 V DC
- External power supply
- Rated frequency
- Rated current
- A
- Quiescent current
- Quiescent current @ 12 V DC
- Quiescent current @ 19 V DC
- approx. 250 μA
- Alarm current @ 12 V DC
- Alarm current
- Current consumption
- Current consumption
- Current consumption @ 12 V DC
- approx. 3 mA
- Current consumption @ 24 V DC
- Contact load relay
- 30 V DC / 1 A (max. 3 A each transponder)
- No. of detector/zone
- Operation indicator
- Alarm display
- Connection terminal
- Application temperature
- Ambient temperature
- -10 °C ... 50 °C
- Storage temperature
- -25 °C ... 75 °C
- Air humidity
- < 95 %
- Air humidity
- Type of protection
- IP 40 (with housing)
- Housing
- Color
- Weight
- approx. 110 g
- Weight
- Dimensions
- W: 150 mm H: 82 mm D: 20 mm
- Declaration of Performance
- DoP-20611130701
Accessories
788612 Loop isolator PCB
788600 Surface mounting housing gray, similar to RAL 7035
788650.10 Surface mounting housing white, similar to RAL 9003
788601 Flush mounting housing gray, similar to RAL 7035
788651.10 Flush mounting housing white, similar to RAL 9003
Additional information
No monitored control according to EN 54 possible
Downloads
Product data sheet esserbus transponder
