Features
- Runtime monitoring of controlled device
- Monitoring 2 states with an input
- Steady or impulsive triggering of relay output
- Max. 127 IQ8FCT transponders per analog loop

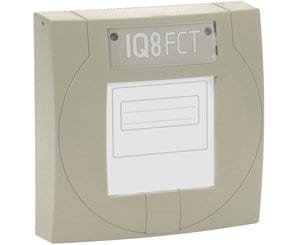

IQ8FCT with isolator, 1 contact IN/1 OUT
Same as 804868, but with additional fire control transponder (FCT) software functionality.
- Part-No.:
- 804867
- Approval:
- VdS
Technical Data
- Rated voltage
- V AC
- Rated voltage
- Operating voltage
- External power supply
- Rated frequency
- Rated current
- A
- Quiescent current
- Quiescent current @ 12 V DC
- Quiescent current @ 19 V DC
- Alarm current @ 12 V DC
- Alarm current
- Current consumption
- Current consumption
- Current consumption @ 12 V DC
- Current consumption @ 24 V DC
- Contact load relay
- No. of detector/zone
- Operation indicator
- Alarm display
- Connection terminal
- Application temperature
- Ambient temperature
- Storage temperature
- -30 °C ... 75 °C
- Air humidity
- < 95 %
- Air humidity
- Type of protection
- IP 43, IP 55 with cover 704965
- Housing
- Color
- gray, similar to RAL 7035
- Weight
- approx. 110 g
- Weight
- Dimensions
- Declaration of Performance
- DoP-20792130701
Accessories
704965 Protective kit for MCP and TAL, transparent
704985 Surface mount housing for small MCP, gray
Additional information
Please note that for surface mounting, the mount housing (Part No. 704985) must be ordered separately.
The IQ8FCT cannot be operated on the following systems:
FACP 80, System 3000 (FACP 3007/3008), FACP 8008, FACP 8000 C/M, Extinguishing System 8010
