Features
- Each output is separately fused
DC/DC converter 12 V/24 V DC

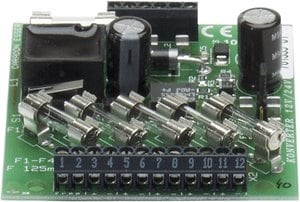

This converter generates 24 V as power supply for special detectors. The input voltage of 12 V is taken from the FACP or an external 12 V power supply. Mounted inside the FACP (mounting kit Part No. 788605), this module can supply up to 4 special detectors with a maximum current of 125 mA each or 1 special detector with 500 mA. This module can be integrated in cabinets (Part No. 120240, 788600 and 788601). Please pay attention to the primary current consumption (12 V) in case of mains failure.
- Part-No.:
- 781335
- Approval:
- VdS
Technical Data
- Rated voltage
- V AC
- Rated input voltage
- Rated input current
- Ripple
- Output power *8
- Output fuse (250V)
- Indication Output voltage
- Efficiency
- Type of installation
- Regulations
- Overvoltage category
- Protection class
- Installation location
- Rated frequency
- Rated current
- Operating voltage
- 9 ... 15 V DC
- Output voltage
- 24 V DC ± 10 %
- Output current
- Output current
- max. 500 mA (4 x 125 mA)
- Rated Output Current
- A
- Quiescent current
- Current consumption
- Current consumption for ext. devices
- A
- Battery capacity
- Emergency power supply
- V DC
- Contact load relay
- Efficiency
- %
- Cooling
- Ambient temperature
- -10 °C ... 50 °C
- Storage temperature
- -15 °C ... 55 °C
- Air humidity
- < 95 %
- Type of protection
- IP 40 (housing)
- Housing
- Color
- Weight
- approx. 150 g
- Weight
- Cable length
- m
- Dimensions
- W: 65 mm H: 72 mm D: 20 mm
- Declaration of Performance
- DoP-20616130701
- Approval
Accessories
788600 esserbus® transponder housing wall mount grey
788650 esserbus® transponder housing wall mount white
788601 esserbus® transponder housing flush mount grey
788651 esserbus® transponder housing flush mount white
788605 Mounting kit
788602 C-rail
788603 Module housing
