Power supply extension 24 V/24 Ah

Power supply extension 24 V/24 Ah

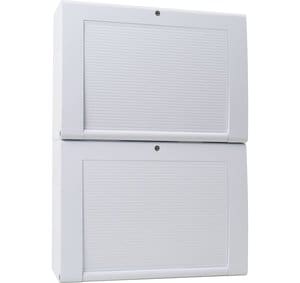

Additional power supply for extension of the power supply in the basic control panel set. The power supply extension supplements the existing panel power supply with an additional 150 W via a plug-in line connection. There is space for two 12 V/24 Ah batteries on the bottom of the housing. Two additional 24 Ah batteries can be connected with an extern housing (Part No. FX808313). Additional components can be mounted onto top-hat rails in the power supply housing.

Part-No.:: FX808364

Technical Data

Rated voltage: 230 V AC
Rated input voltage
Rated input current
Ripple
Output power *8
Output fuse (250V)
Indication Output voltage
Efficiency
Type of installation
Regulations
Overvoltage category
Protection class
Installation location
Rated frequency: 50 Hz ... 60 Hz
Rated current: 0,8 A
Operating voltage
Output voltage: 24 V DC
Output current: max. 6 A
Output current
Rated Output Current: A
Quiescent current

Current consumption
Current consumption for ext. devices: 3 A
Battery capacity: 4 x 12 V / 24 Ah (max. 4 x 12 V 24 Ah)
Emergency power supply: V DC
Contact load relay
Efficiency: %
Cooling
Ambient temperature: -5 °C ... 45 °C
Storage temperature: -10 °C ... 50 °C
Air humidity: < 95 % (non-condensing)
Type of protection
Housing: ABS, 10% glass fiber reinforced, V - 0
Color: gray, similar to Pantone 538
Weight
Weight: approx. 10,3 kg

Cable length: m
Dimensions: W: 450 mm H: 640 mm D: 185 mm


Declaration of Performance
Approval

Accessories

FX808330 3-way plug

FX808455 Cable power supply cascading 2,5 m

Additional information

Optional units:

(Part No. 018006) battery, maximum 2 x 12 V/24 Ah (24 V/24 Ah)

(Part No. FX808313) battery extension housing for 2 x 12 V/24 Ah

Only the same types of battery (manufacturer, date of manufacture, capacity, and charge status) may be connected to the power supply module. Cascading details are mentioned in the technical manual Part No. included in accessories.

Scope of delivery

Set includes 1 x housing rear panel 1, 1 x housing frame, battery holders for 2 x 24 V/24 Ah (including PS connection module, connecting cable 0.6 m),1 x power supply module 24 V DC/150 W, 1 x neutral front, 1 x extension housing for two batteries including neutral front and 1 x plug-in connection cable, 1 x set air filter
