6 W 6.5" flush-mounted wall loudspeaker EN 54

582425 | 6 W 6.5

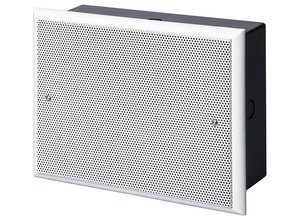

The white WU 06-165/T EN 54-24 was specifically developed for flush mount-installations. The stable rectangular in-wall loudspeaker with its stable sheet steel perforated grid cover also stands out due to its discrete softline appearance. It has a maximum output of 6 W, and can be adjusted to 3 W or 1.5 W, if necessary. Balanced sound dynamics are provided by a high-grade 165 mm broadband loudspeaker chassis. The loudspeaker is protected against dust and other forms of environmental impact by way of a synthetic shock-resistant ABS-flush mount enclosure in black. The loudspeaker features an integrated ceramic terminal block and a thermal fuse. Moreover, the loudspeaker chassis is impregnated against moisture.

Part-No.:
582425

Technical Data

Rated Power
6 W
Rated power handling
Transformer power taps
Rated impedance
Kennschalldruck 1W / 1m
Kennschalldruck 1W / 4m
Kennschalldruck 6W / 4m
SPL 1 W / 1 m (Double)
dB
SPL Pmax / 1 m
dB
SPL Pmax / 1m (Double)
dB
Sensitivity EN 54-24, 1 W / 1 m
91,6 dB
Sensitivity EN 54 (double)
dB
Sensitivity EN 54-24 max (double)
dB
Sensitivity
dB
Sensitivity EN 54-24, max 1 m
99,1 dB
Transmission range
93 Hz ... 23500 Hz
Sensitivity EN 54-24 1 W / 1 m_comp
Sensitivity EN 54-24, 1 W / 4 m_comp
Sensitivity EN 54-24 6 W / 4 m_comp
Impedance
Ω
Sensitivity
mV
Sensitivity
Dispersion angle
Ambient temperature
-20 °C ... 80 °C
Storage temperature
Air humidity
Air humidity
Type of protection
Housing
Material
Color
white, similar to RAL 9010

Weight
Weight
approx. 1,3 kg

Cut-out size
Connection lead
Dimensions
W: 255 mm H: 195 mm D: 88 mm


SPL Pmax / 1m
Rated voltage
Output power *8
Approval

Downloads

Produktdatenblatt
Ausschreibungstext

Product Data Sheet

Version: 2024-12
