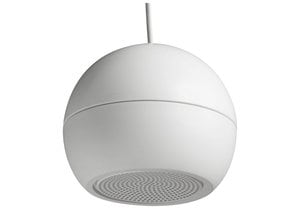

16 W spherical speaker EN 54, ABS

16 W spherical speaker EN 54, ABS

The compact DL-K 16-130/T-EN 54 is equipped with a corrosion-resistant 130 mm full range speaker chassis with ceramic terminal and thermal fuse. The 16 W high ball speaker certified to EN 54-24 with ABS housing (UL94 HB) offers a high sound pressure level and a balanced frequency response.

Part-No.:: 582460

Technical Data

Rated Power: 16 W
Rated power handling
Transformer power taps
Rated impedance
Kennschalldruck 1W / 1m
Kennschalldruck 1W / 4m
Kennschalldruck 6W / 4m
SPL 1 W / 1 m (Double): dB
SPL Pmax / 1 m: dB
SPL Pmax / 1m (Double): dB
Sensitivity EN 54-24, 1 W / 1 m: 85 dB
Sensitivity EN 54 (double): dB
Sensitivity EN 54-24 max (double): dB
Sensitivity: dB
Sensitivity EN 54-24, max 1 m: 97 dB
Transmission range: 130 Hz ... 13300 Hz
Sensitivity EN 54-24 1 W / 1 m_comp
Sensitivity EN 54-24, 1 W / 4 m_comp
Sensitivity EN 54-24 6 W / 4 m_comp
Impedance: Ω
Sensitivity: mV
Sensitivity
Dispersion angle
Ambient temperature: -20 °C ... 80 °C
Storage temperature
Air humidity
Air humidity
Type of protection
Housing
Material
Color: white, similar to RAL 9010

Weight
Weight: approx. 1,5 kg

Cut-out size
Connection lead
Dimensions: Ø: 185 mm D: 157 mm


SPL Pmax / 1m
Rated voltage
Output power *8
Approval

Scope of delivery

Pre-mounted, 5-core connection cable, length 4,50 m

Including canopy

Downloads

Produktdatenblatt

Ausschreibungstext

Product Data Sheet

Version: 2024-12

Language:: English
Doc extension:: pdf
