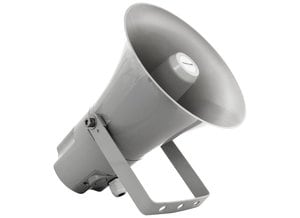

15 W horn loudspeaker EN 54, ABS

582479 | 15 W horn loudspeaker EN 54, ABS

The horn loudspeaker offers a high sound pressure and long-lasting weather resistance, ideal for use in industrial projects. The IP 66 high protection class guarantees operational safety even under the most difficult conditions. The loudspeaker is also equipped with a ceramic terminal block and a thermal fuse for increased safety. The shock-resistant ABS enclosure according to UL94V0 ensures long-lasting stability. A U-shaped non-corrosive universal bracket is enclosed for flexible mounting. The cable connection is done without need for an additional junction box. The flexible power adjustment can be easily done with the rotary switch on the back side of the loudspeaker. The loudspeaker is also suitable for outdoors use. The loudspeaker complies with standard BS 5859 Part 8, and is certified in accordance with EN 54 Part 24.

Part-No.:
582479

Technical Data

Rated Power
15 W
Rated power handling
Transformer power taps
Rated impedance
Kennschalldruck 1W / 1m
Kennschalldruck 1W / 4m
Kennschalldruck 6W / 4m
SPL 1 W / 1 m (Double)
dB
SPL Pmax / 1 m
dB
SPL Pmax / 1m (Double)
dB
Sensitivity EN 54-24, 1 W / 1 m
105 dB
Sensitivity EN 54 (double)
dB
Sensitivity EN 54-24 max (double)
dB
Sensitivity
dB
Sensitivity EN 54-24, max 1 m
117 dB
Transmission range
300 Hz ... 16000 Hz
Sensitivity EN 54-24 1 W / 1 m_comp
Sensitivity EN 54-24, 1 W / 4 m_comp
Sensitivity EN 54-24 6 W / 4 m_comp
Impedance
Ω
Sensitivity
mV
Sensitivity
Dispersion angle
Ambient temperature
-25 °C ... 55 °C
Storage temperature
-40 °C ... 70 °C
Air humidity
Air humidity
Type of protection
Housing
Material
ABS
Color
light grey, similar to RAL 7035

Weight
Weight
approx. 2,05 kg

Cut-out size
Connection lead
Dimensions
Ø: 213 mm D: 265 mm


SPL Pmax / 1m
Rated voltage
Output power *8
Approval
