30 W 2-way horn loudspeaker EN 54, ABS

582433 | 30 W 2-way horn loudspeaker EN 54, ABS

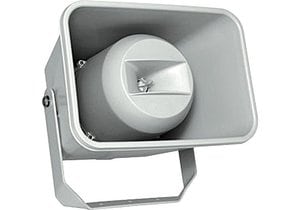

The 2-way music horn DK-MH 30/T plus-EN 54 with impact-resistant ABS housing in light gray (similar to RAL 7035) and protection class IP 66, complements the series of horn loudspeaker for voice alarm. For more safety, it is also equipped with ceramic terminal and thermal fuse. An enormous sound pressure and a convincing music quality, likewise as simple and flexible installation with stainless aluminum universal mount. The flexible power adjustment can be easily done on the back side of the loudspeaker, 30 W, 15 W, 7,5 W, 3,75 W. The DK MH30/T plus-EN 54 is also suitable for using in outdoor areas.

Part-No.:
582433

Technical Data

Rated Power
30 W
Rated power handling
Transformer power taps
Rated impedance
Kennschalldruck 1W / 1m
Kennschalldruck 1W / 4m
Kennschalldruck 6W / 4m
SPL 1 W / 1 m (Double)
dB
SPL Pmax / 1 m
dB
SPL Pmax / 1m (Double)
dB
Sensitivity EN 54-24, 1 W / 1 m
90,4 dB
Sensitivity EN 54 (double)
dB
Sensitivity EN 54-24 max (double)
dB
Sensitivity
dB
Sensitivity EN 54-24, max 1 m
104,8 dB
Transmission range
237 Hz ... 21100 Hz
Sensitivity EN 54-24 1 W / 1 m_comp
Sensitivity EN 54-24, 1 W / 4 m_comp
Sensitivity EN 54-24 6 W / 4 m_comp
Impedance
Ω
Sensitivity
mV
Sensitivity
Dispersion angle
Ambient temperature
-20 °C ... 90 °C
Storage temperature
Air humidity
Air humidity
Type of protection
Housing
Material
Color
white, similar to RAL 9010

Weight
Weight
approx. 4,5 kg

Cut-out size
Connection lead
Dimensions
W: 370 mm H: 255 mm D: 291 mm


SPL Pmax / 1m
Rated voltage
Output power *8
Approval
