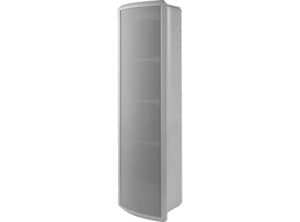

40 W column oudspeaker EN 54, metal

582477 | 40 W column oudspeaker EN 54, metal

The 40 W column loudspeaker has a broad frequency range and a high acoustic pressure level. This guarantees an accurate and intelligible transmission of the evacuation message, as well as excellent sound reproduction. It can be used indoors as well as outdoors, in dry as well as in humid surroundings. Due to its flat design and the white coating, the loudspeaker can be easily integrated in hotels, conference rooms, cinemas, factories, trade fair halls and other buildings. The loudspeaker complies with standard BS 5859 Part 8, and is certified in accordance with EN 54 Part 24.

Part-No.:
582477

Technical Data

Rated Power
40 W
Rated power handling
Transformer power taps
Rated impedance
Kennschalldruck 1W / 1m
Kennschalldruck 1W / 4m
Kennschalldruck 6W / 4m
SPL 1 W / 1 m (Double)
dB
SPL Pmax / 1 m
dB
SPL Pmax / 1m (Double)
dB
Sensitivity EN 54-24, 1 W / 1 m
94 dB
Sensitivity EN 54 (double)
dB
Sensitivity EN 54-24 max (double)
dB
Sensitivity
dB
Sensitivity EN 54-24, max 1 m
110 dB
Transmission range
300 Hz ... 15000 Hz
Sensitivity EN 54-24 1 W / 1 m_comp
Sensitivity EN 54-24, 1 W / 4 m_comp
Sensitivity EN 54-24 6 W / 4 m_comp
Impedance
Ω
Sensitivity
mV
Sensitivity
Dispersion angle
Ambient temperature
-25 °C ... 55 °C
Storage temperature
-40 °C ... 70 °C
Air humidity
< 95 %
Air humidity
Type of protection
Housing
Material
Aluminum
Color
white, similar to RAL 9003

Weight
Weight
approx. 5,75 kg

Cut-out size
Connection lead
Dimensions
W: 165 mm H: 568 mm D: 150 mm


SPL Pmax / 1m
Rated voltage
Output power *8
Approval

Scope of delivery

Wall mount included
