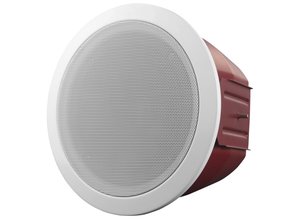

6 W 5" ceiling loudspeaker EN 54 with fire dome, metal

LSC-506 | 6 W 5

This voice alarm ceiling loudspeaker is specifically designed for use in buildings where performance of systems for voice evacuation announcements is governed by regulations. It is designed for flush mounting in suspended ceiling and ideal for even sound distribution. The appearance and neutral white RAL 9003 color have been selected to be unobtrusive in virtually all interiors. The fire dome increases protection of the cable termination. The driver unit is impregnated against moisture. For additional safety, this EN 54-24 ceiling loudspeaker features a ceramic terminal block and a thermal fuse.

Part-No.:
LSC-506

Technical Data

Rated Power
6 W
Rated power handling
Transformer power taps
Rated impedance
Kennschalldruck 1W / 1m
Kennschalldruck 1W / 4m
Kennschalldruck 6W / 4m
SPL 1 W / 1 m (Double)
dB
SPL Pmax / 1 m
dB
SPL Pmax / 1m (Double)
dB
Sensitivity EN 54-24, 1 W / 1 m
91 dB
Sensitivity EN 54 (double)
dB
Sensitivity EN 54-24 max (double)
dB
Sensitivity
dB
Sensitivity EN 54-24, max 1 m
99 dB
Transmission range
180 Hz ... 20000 Hz
Sensitivity EN 54-24 1 W / 1 m_comp
Sensitivity EN 54-24, 1 W / 4 m_comp
Sensitivity EN 54-24 6 W / 4 m_comp
Impedance
Ω
Sensitivity
mV
Sensitivity
Dispersion angle
Ambient temperature
-25 °C ... 55 °C
Storage temperature
-40 °C ... 70 °C
Air humidity
< 95 %
Air humidity
Type of protection
Housing
Material
Metal
Color
white, similar to RAL 9003 / red, similar to RAL 3000

Weight
Weight
approx. 1,29 kg

Cut-out size
(Ø min.) 155 mm
Connection lead
Dimensions
Ø: 181 mm D: 129 mm


SPL Pmax / 1m
Rated voltage
Output power *8
Approval
