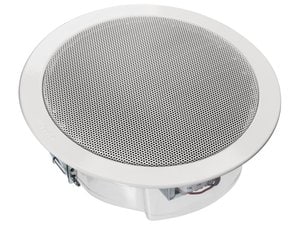

6 W 6.5" ceiling loudspeaker EN 54, metal

582408 | 6 W 6.5

With its flat forms, the type DL-E. 06-165/T-EN 54-24 is optically a good fit for the ceilings for which they were designed. The 6.5" broadband loudspeaker chassis, which is impregnated against humidity, distinguishes itself by way of its high degree of effectiveness. Typically, the 6 W, 3 W, or 1.5 W power setting can be selected. The spring latch (3 pieces) guarantees an uncomplicated and quick mounting onto the ceiling. In the standard version, a protective cover made out of a synthetic material is mounted to the back side of the loudspeaker, but a fire dome certified according to the EN 54 Part 24 standard is optionally available as well. If the loudspeaker is also meant to be used in accordance with BS 5839-8, it is possible to order the optional thermal fuse and a ceramic terminal, and to mount them (also certified in accordance with EN 54-24).

Part-No.:
582408

Technical Data

Rated Power
6 W
Rated power handling
Transformer power taps
6/3/1.5 W
Rated impedance
Kennschalldruck 1W / 1m
Kennschalldruck 1W / 4m
Kennschalldruck 6W / 4m
SPL 1 W / 1 m (Double)
dB
SPL Pmax / 1 m
dB
SPL Pmax / 1m (Double)
dB
Sensitivity EN 54-24, 1 W / 1 m
97,8 dB
Sensitivity EN 54 (double)
dB
Sensitivity EN 54-24 max (double)
dB
Sensitivity
dB
Sensitivity EN 54-24, max 1 m
105,3 dB
Transmission range
300 Hz ... 19300 Hz
Sensitivity EN 54-24 1 W / 1 m_comp
Sensitivity EN 54-24, 1 W / 4 m_comp
Sensitivity EN 54-24 6 W / 4 m_comp
Impedance
Ω
Sensitivity
mV
Sensitivity
Dispersion angle
Ambient temperature
-10 °C ... 55 °C
Storage temperature
Air humidity
Air humidity
Type of protection
Housing
Material
Color
white, similar to RAL 9016

Weight
Weight
approx. 0,76 kg

Cut-out size
(Ø min.) 165 mm
Connection lead
Dimensions
Ø: 200 mm D: 72 mm


SPL Pmax / 1m
Rated voltage
Output power *8
Approval

Accessories

Optional:

582408.FD Fire dome (FE 165.1) for ceiling loudspeaker Part No. 582408, 582408.
