Features
- Direct current potentials are electrically isolated
- Suitable for max 1.5 mm² connection terminals
- Short circuit resilient

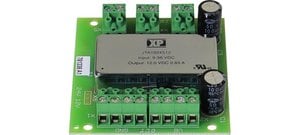

DC/DC converter output voltage 24 V DC
This converter generates 24 V as power supply for one special detector. The input voltage of 12 V is taken from the FACP or an external power supply. This module can be integrated in cabinets (Part No. 120240, 788600, 788601 and 788603.10). Please pay attention to the primary current consumption (12 V) in case of mains failure.
- Part-No.:
- 781337
- Approval:
- VdS
Technical Data
- Rated voltage
- V AC
- Rated input voltage
- Rated input current
- Ripple
- Output power *8
- Output fuse (250V)
- Indication Output voltage
- Efficiency
- Type of installation
- Regulations
- Overvoltage category
- Protection class
- Installation location
- Rated frequency
- Rated current
- Operating voltage
- 10 ... 28 V DC
- Output voltage
- 24 V DC ± 10 %
- Output current
- Output current
- max. 400 mA
- Rated Output Current
- A
- Quiescent current
- Current consumption
- Current consumption for ext. devices
- A
- Battery capacity
- Emergency power supply
- V DC
- Contact load relay
- Efficiency
- %
- Cooling
- Ambient temperature
- -10 °C ... 50 °C
- Storage temperature
- -15 °C ... 55 °C
- Air humidity
- < 95 %
- Type of protection
- IP 40 (housing)
- Housing
- Color
- Weight
- approx. 70 g
- Weight
- Cable length
- m
- Dimensions
- W: 65 mm H: 72 mm D: 20 mm
- Declaration of Performance
- DoP-20617130701
- Approval
