8000 FACP remote SEI serial essernet interface

784859 | 8000 FACP remote SEI serial essernet interface

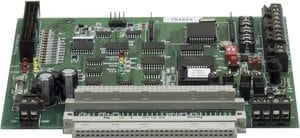

The serial essernet interface is a router with internal RS 485 interface for interfacing an 8000 fire alarm panel over relatively large distances e.g. subnetworks.

Information from the connected fire alarm panel is received via a router/router link and made available in the host essernet. The first SEI is connected as Master and the second SEI as Slave.

It has a slot for an essernet loop module and is thus an integral device in the short circuit and open circuit resistant essernet. For remote function, you can use the integrated RS 485 interface.

Part-No.:
784859

Features

  • RS 485 interface on board for a max. length of 1,000 m

Technical Data

Rated voltage
V AC
Zertifizierung
Leistungsaufnahme und DAS-Ausgang unter 48 V
Leistungsaufnahme und DAS-Ausgang unter 24 V
DAS Ausgangsspannung (nur positive Sicherheit)
Eingang der Spannungsversorgung
Spannungsfernbedienungseingang mit Spannungsemission
Spannung_Fernbedienungseingang mit Stromunterbrechung
Rated voltage
Rated frequency
Nominal frequency
Hz
Rated current
Operating voltage
Operating voltage
V DC
Operating voltage
Output voltage
Rated current
Output voltage
Output current
Output current
Quiescent current

Quiescent current @ 12 V DC
Current consumption
Current consumption
Current consumption @ 12 V DC
Current consumption @ 24 V DC
Alarm current @ 12 V DC
Current consumption for ext. devices
A
Belastbarkeit pro Ausgang
Power consumption
W
Battery
Battery capacity

Resolution
Contact load relay
Contact load
Connection terminal
Holding power
N
Cable entry
Application temperature
Ambient temperature
Storage temperature
Ambient conditions
Air humidity
Air humidity
Type of protection
Housing
Material
Color

Color front plate
Height
Weight
Weight

FO-Connector
Cable length
m
Cable
Dimensions


Declaration of Performance
Specification
Approval
Voltage supply
Ausgangsspannung typisch
Power output
W
Stromaufnahme max.
Akkumulator
Inputs
Outputs
Luftfeuchtigkeit
Montageart
Schaltleistung max.
Schraubklemmen Drahtquerschnitt max.
Stromaufnahme typisch
Versorgungsspannung Alarmgeberkreise
Ausgangsstrom max.
Versorgungsspannung
V
Versorgungsspannung_a
Stromaufnahme bei 24 V
Nennausgangsleistung
min. Ausgangsstrom
max. Ausgangsstrom

Accessories

788606 Housing kit

772386 Interface-module RS 232/V 24

772387 Interface-module TTY/CL 20 mA

784840.10 essernet micromodule (62.5 kBd)

784841.10 essernet micromodule (500 kBd)

Additional information

The essernet micromodule and the interface module either RS 232 (Part No. 772386) or TTY (Part No. 772387) are not included and must be ordered separately in accordance with the required essernet type and the serial transmission standard. The optional interface module must be ordered separately and is a supplement to the serial essernet interface. It is plugged into the connectors provided on the main PCB. Depending on the required application, a TTY /CL 20 mA (Part No. 772387) or a RS232 / V.24 (Part No. 772386) interface module may be installed on the serial essernet interface.

Scope of delivery

770432 SEI setup

Downloads

Produktdatenblatt
Ausschreibungstext

Product Data Sheet

Version: 2024-11
