Serial essernet Interface redundant (SEI2red) 500 kBd

784853 | Serial essernet Interface redundant (SEI2red) 500 kBd

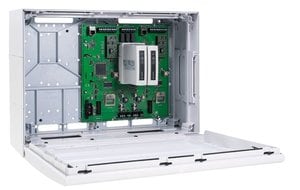

The serial essernet Interface redundant (SEI2red) connects ESSER fire alarm control panels to management systems, other essernet sub-networks or to an essernet backbone.

Up to 31 devices @ 500 kBd (SEI1, SEI2, FACP FlexES Control) can be configured in the backbone according to the known network rules, this means max. 10 SEI2 + 21 FACP’s @ 500 kBd (backbone) and up to 300 panels in ten subnets (each with max. 30 panels / and one SEI2/SEI2red – 31 essernet nodes), Total system = 321 panels (backbone and subnets)The SEI2 of the backbone must be configured as sub-control panels.Together with the up to 10 subnets, a hierarchical system is formed, as statuses can be sent from the subnet to the backbone and commands can be sent from the backbone to the subnet.Commands for primary lines (from the backbone to the subnet) must be blocked with command filters depending on the system.Statuses (messages) in the backbone which are sent to the router must also be blocked with filters.The transmission of statuses and commands from one subnet to another is not possible. The subnets are subordinate, and their information is sent to the higher level backbone. In the backbone, this information is evaluated according to the known network rules, logged and linked.

Part-No.:
784853

Features

  • Up to 31 devices @ 500 kBd (SEI1, SEI2, FACP FlexES Control) can be configured in the backbone according to the known network rules, this means max. 10 SEI2 + 21 FACP’s @ 500 kBd (backbone) and up to 300 panels in ten subnets (each with max. 30 panels / and one SEI2/SEI2red – 31 essernet nodes), Total system = 321 panels (backbone and subnets)
  • The SEI2 of the backbone must be configured as sub-control panels.
  • Together with the up to 10 subnets, a hierarchical system is formed, as statuses can be sent from the subnet to the backbone and commands can be sent from the backbone to the subnet.
  • Commands for primary lines (from the backbone to the subnet) must be blocked with command filters depending on the system.
  • Statuses (messages) in the backbone which are sent to the router must also be blocked with filters.
  • The transmission of statuses and commands from one subnet to another is not possible. The subnets are subordinate, and their information is sent to the higher level backbone. In the backbone, this information is evaluated according to the known network rules, logged and linked.

Technical Data

Rated voltage
V AC
Zertifizierung
Leistungsaufnahme und DAS-Ausgang unter 48 V
Leistungsaufnahme und DAS-Ausgang unter 24 V
DAS Ausgangsspannung (nur positive Sicherheit)
Eingang der Spannungsversorgung
Spannungsfernbedienungseingang mit Spannungsemission
Spannung_Fernbedienungseingang mit Stromunterbrechung
Rated voltage
12 V DC or 24 V DC
Rated frequency
Nominal frequency
Hz
Rated current
Operating voltage
10,5 ... 30 V DC
Operating voltage
V DC
Operating voltage
Output voltage
Rated current
Output voltage
Output current
Output current
Quiescent current

Quiescent current @ 12 V DC
Current consumption
without essernet module approx. 30 mA @ 12 V DC / approx. 20 mA @ 24 V DC and with essernet module approx. 130 mA @ 12 V DC / approx. 70 mA @ 24 V DC
Current consumption
Current consumption @ 12 V DC
Current consumption @ 24 V DC
Alarm current @ 12 V DC
Current consumption for ext. devices
A
Belastbarkeit pro Ausgang
Power consumption
W
Battery
Battery capacity

Resolution
Contact load relay
Contact load
Connection terminal
Holding power
N
Cable entry
Application temperature
Ambient temperature
-5 °C ... 50 °C
Storage temperature
-10 °C ... 50 °C
Ambient conditions
Air humidity
Air humidity
< 95 %
Type of protection
IP 30
Housing
ABS plastic, 10% glass fibre reinforced, V-0
Material
gray, similar to Pantone 538
Color
grey, similar to Pantone 538

Color front plate
Height
Weight
Weight

FO-Connector
Cable length
m
Cable
Dimensions
W: 270 mm H: 221 mm D: 75 mm


Declaration of Performance
Specification
Approval
Voltage supply
Ausgangsspannung typisch
Power output
W
Stromaufnahme max.
Akkumulator
Inputs
Outputs
Luftfeuchtigkeit
Montageart
Schaltleistung max.
Schraubklemmen Drahtquerschnitt max.
Stromaufnahme typisch
Versorgungsspannung Alarmgeberkreise
Ausgangsstrom max.
Versorgungsspannung
V
Versorgungsspannung_a
Stromaufnahme bei 24 V
Nennausgangsleistung
min. Ausgangsstrom
max. Ausgangsstrom

Accessories

784870 M4-RS232-iso Interface module

784871 M4-RS485-iso Interface module

784872 M4-TTY Interface module

Additional information

The essernet modules (MAIN and RED./redundant) are included in the SEI2red at the factory and are required for the connection with other essernet devices.

The use of SEI2/SEI2red in backbone objects or for the connection of DTS (Distributed Temperature Sensing/Linear Heat Detection) requires project verification and approval by the TSC (Technical Solution Center) department. Please consider our separate release form in the download area -

“Release form for SEI.2 serial essernet interface”!

All of the following modules are equipped with electric isolation and reverse polarity protection. Two modules that are the same are required for redundant use.
