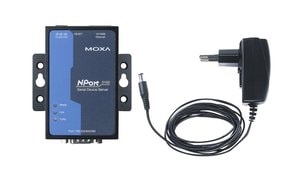

TCP/IP converter, Ethernet RS232 / RS485

013405.20 | TCP/IP converter, Ethernet RS232 / RS485

This hardware option is used to connect a remotely a stand-alone FACP or an essernet FACP network essernet via a (for example) company-wide Ethernet LAN to a MBS Management Building System e.g. WINMAG plus or FlexES Guard control center via TCP/IP. This allows the device to be used as a protocol converter between the SEI contained on the essernet and the WINMAGplus / FlexES Guard control center available in the Ethernet LAN.

Part-No.:
013405.20

Features

  • Transmission with RS 232 max. length 15 m and with RS485 max. length 1,000 m
  • Serial interface: RS232, RS422 or RS485 (2- and 4-wire), configurable via software
  • Transmission speed: 300 baud to max. 230 kBaud configurable via software
  • Serial connection: D-Sub 25, socket
  • Ethernet interface: 10Base-T/100Base-TX
  • Transmission speed: 10/100/auto Mbit, configurable via software
  • Mode of transmission: half- /full-duplex or automatic, configurable via software
  • Network access: RJ 45
  • Supported protocol: ARP, UDP, TCP, ICMP, Telenet, TFTP, AutoIP, DHCP, HTTP, SNMP, TCP, UDP and Telnet, TFTP

Technical Data

Rated voltage
V AC
Zertifizierung
Leistungsaufnahme und DAS-Ausgang unter 48 V
Leistungsaufnahme und DAS-Ausgang unter 24 V
DAS Ausgangsspannung (nur positive Sicherheit)
Eingang der Spannungsversorgung
Spannungsfernbedienungseingang mit Spannungsemission
Spannung_Fernbedienungseingang mit Stromunterbrechung
Rated voltage
Rated frequency
Nominal frequency
Hz
Rated current
Operating voltage
12 ... 48 V DC
Operating voltage
V DC
Operating voltage
Output voltage
Rated current
Output voltage
Output current
Output current
Quiescent current

Quiescent current @ 12 V DC
Current consumption
Current consumption
Current consumption @ 12 V DC
Current consumption @ 24 V DC
Alarm current @ 12 V DC
Current consumption for ext. devices
A
Belastbarkeit pro Ausgang
Power consumption
1,5 W
Battery
Battery capacity

Resolution
Contact load relay
Contact load
Connection terminal
Holding power
N
Cable entry
Application temperature
Ambient temperature
0 °C ... 55 °C
Storage temperature
-20 °C ... 75 °C
Ambient conditions
Air humidity
Air humidity
< 95 %
Type of protection
Housing
metal
Material
Color

Color front plate
Height
Weight
approx. 340 g
Weight

FO-Connector
Cable length
m
Cable
Dimensions
W: 52 mm H: 80 mm D: 22 mm (housing)

W:75,2 mm H: 80 mm D: 22 mm (with tabs)

Declaration of Performance
Specification
Approval
Voltage supply
Ausgangsspannung typisch
Power output
W
Stromaufnahme max.
Akkumulator
Inputs
Outputs
Luftfeuchtigkeit
Montageart
Schaltleistung max.
Schraubklemmen Drahtquerschnitt max.
Stromaufnahme typisch
Versorgungsspannung Alarmgeberkreise
Ausgangsstrom max.
Versorgungsspannung
V
Versorgungsspannung_a
Stromaufnahme bei 24 V
Nennausgangsleistung
min. Ausgangsstrom
max. Ausgangsstrom

Additional information

System requirements for operation and software configuration:

Windows® 2000/XP

Bidirectional or unidirectional data transfer depends on the SEI used, thus serial essernet interface EDP unidirectional Part No. 784855 or bidirectional Part No. 784856. Up to 10 TCP/IP converters can be connected per PC (Personal Computer) / Workstation more than 10 converters needs a project related approval from the Technical Solution Center in Neuss-Germany.
