Explosion-proof conventional MCP, IP66

Explosion-proof conventional MCP, IP66

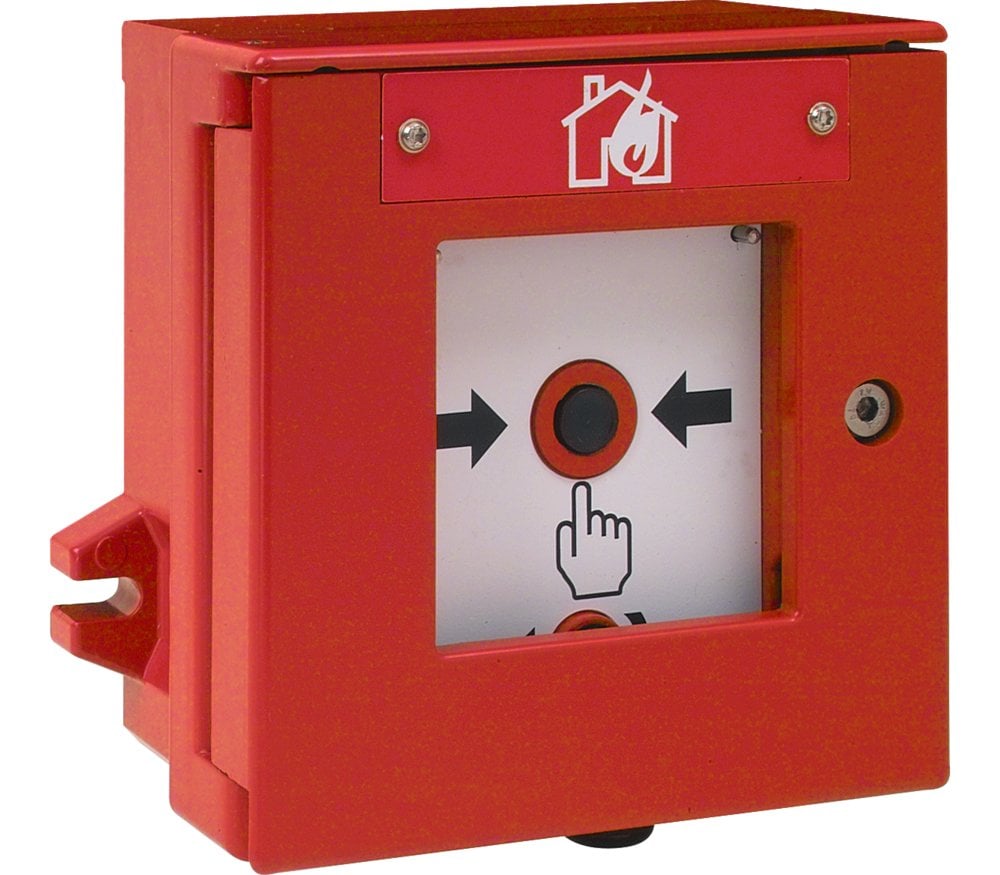

Explosion-proof encapsulated conventional manual call point for hazardous areas in conformity with EN 54-11 Type B for the manual actuation of a fire alarm and/or a hazard alarm, as a detector for usage in explosion-hazardous areas both inside and outside. The operating front foil has been designed as a double-sided insert. Complementary to the symbolism conforming to the standards for manual call points in compliance with EN 54-11 (Type B), it has a symbol and multilingual text on the back for the "Out of order" status of the detector and is always available for possible maintenance work. The labeling foil of the manual call point also has a double-sided design. In compliance with EN 54-11, it contains the standard symbol of a burning house. On the back, the symbol is supplemented with the word “FIRE” (multilingual).

Part-No.:: 761697
Approval:: VdS

Features

An Ex-barrier for the connection will be not necessary

Technical Data

Common technical data:
Leistungserklärung
Rated voltage: V AC
Rated frequency
Rated current
Output current
Battery capacity
Operating voltage: 12 ... 24 V DC

Operating voltage: V DC
Operating voltage
Quiescent current
Lichtquelle
Leuchtfarbe

Quiescent current @ 9 V DC: μA
Quiescent current @ 12 V DC
Quiescent current @ 19 V DC: μA
Quiescent current @ 24 V DC
Quiescent current @ FACP battery
Quiescent current @ FACP battery
Quiescent current: μA
Current consumption
Current consumption
Current consumption @ 12 V DC
Current consumption @ 24 V DC
Starting current: mA
Current consumption in the case of failure: mA
Current consumption testmode: mA
Alarm current
Alarm current: approx. 9 mA
Alarm current @ 9 V DC: mA
Alarm current @ 12 V DC
Alarm current @ 24 V DC: mA
Alarm current @ 24 V DC
Alarm current w/o communication curtain: mA
Power consumption
Current consumption for ext. devices: A
Testing capacity
Battery charging
Heat detector response threshold
Load factor
Contact load relay
Contact load
Sound level: dB
Sound level @ 12 V DC
Sound level @ 24 V DC
Sound level
No. of detector/zone: max. 10 detectors per Zone (according to VdS)
Circuit: 1 k/10 k (internal)
Display
Operation indicator
Alarm display
Fault display
Frequency of flash
Lighting energy
Flash color
Luminous intensity


Signal flashing lamp
Range
Connection terminal: 0.6 mm ... 4 mm²
CO pre-alarm: ppm
CO alarm: ppm
Area to be monitored
Height to be monitored
Air velocity
Sensitivity
Application temperature: -55 °C ... 65 °C
Ambient temperature
Storage temperature: -55 °C ... 85 °C
Air humidity: < 95 %
Air humidity
Type of protection

Protection class: IP 66
Ex. protection: Ex de mb II C T6 Gb, T5 Gb / Ex tb IIIC T100° Db IP66
Category: II2G
Housing: Glass fiber reinforced polyester resin / Menzolit BMC 2600 (chemical stable, all metal parts made of stainless steel)
Material

Installation
Signal Range
Mounting height wall
Room width
Category ceiling
Mounting height ceiling
Room diameter
Color: red, similar to RAL 3000

Weight
Weight: approx. 1,8 kg
Optisches_Signalbild
Lebensdauer_optisch
Drehfrequenz
Abmessungen
Content
Cable length: m
Maximum sensor length: m
Detector specification: DIN 14678 Form K
DIBt approval
Specification

Cable diameter: mm
Cable entry
Maximum tube length
Dimensions: W: 136 mm H: 138 mm D: 88 mm

Length
Declaration of Performance
Konformität

Accessories

704910 Spare glass pane for MCP housings

Additional information

Successor for Part No. 761696.

Connection to esserbus / esserbus-PLus via IQ8TAL Part No. 804868 possible. Please note, an Allen key (size 4) is needed for opening and resetting the MCP, and is not included in the scope of delivery.
