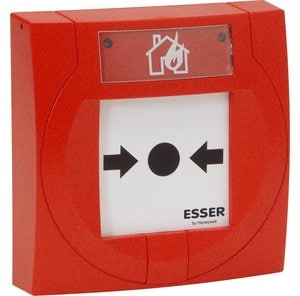

IQ8MCP compact, small, red, with isolator and glass pane

IQ8MCP compact, small, red, with isolator and glass pane

Suitable for esserbus and powered loop connection, with soft address coding, alarm latch and alarm indicator. Conventional detectors can be connected to input of the MCP. Without BUS communication, the detector operates as conventional MCP. Detector housing is included.

Built in isolators maintaining loop integrity.

Part-No.:: 804971
Approval:: VdS

Features

Flat design
Plug-in connection terminals
Optional terminal
Triple key function (test, open, reset)
Detectors that are not ready for operation can be marked with the "Out of order" label by reversing the enclosed glass pane

Technical Data

Common technical data:
Leistungserklärung
Rated voltage: V AC
Rated frequency
Rated current
Output current
Battery capacity
Operating voltage: 8 ... 42 V DC

Operating voltage: V DC
Operating voltage
Quiescent current
Lichtquelle
Leuchtfarbe

Quiescent current @ 9 V DC: μA
Quiescent current @ 12 V DC
Quiescent current @ 19 V DC: 45 μA
Quiescent current @ 24 V DC
Quiescent current @ FACP battery
Quiescent current @ FACP battery
Quiescent current: μA
Current consumption
Current consumption
Current consumption @ 12 V DC
Current consumption @ 24 V DC
Starting current: mA
Current consumption in the case of failure: mA
Current consumption testmode: mA
Alarm current
Alarm current
Alarm current @ 9 V DC: mA
Alarm current @ 12 V DC
Alarm current @ 24 V DC: mA
Alarm current @ 24 V DC
Alarm current w/o communication curtain: 18 mA
Power consumption
Current consumption for ext. devices: A
Testing capacity
Battery charging
Heat detector response threshold
Load factor
Contact load relay
Contact load
Sound level: dB
Sound level @ 12 V DC
Sound level @ 24 V DC
Sound level
No. of detector/zone: max. 127 detectors per loop (according to VdS)
Circuit
Display
Operation indicator: LED, green
Alarm display: red LED and yellow actuation indicator
Fault display
Frequency of flash
Lighting energy
Flash color
Luminous intensity


Signal flashing lamp
Range
Connection terminal: max. 2.5 mm² (AWG 26-14)
CO pre-alarm: ppm
CO alarm: ppm
Area to be monitored
Height to be monitored
Air velocity
Sensitivity
Application temperature: -20 °C ... 70 °C
Ambient temperature
Storage temperature: -30 °C ... 75 °C
Air humidity: < 95 %
Air humidity
Type of protection: IP 43, IP 55 with cover 704965

Protection class
Ex. protection
Category
Housing: PC ASA plastic
Material

Installation
Signal Range
Mounting height wall
Room width
Category ceiling
Mounting height ceiling
Room diameter
Color: red, similar to RAL 3020

Weight: approx. 110 g
Weight
Optisches_Signalbild
Lebensdauer_optisch
Drehfrequenz
Abmessungen
Content
Cable length: m
Maximum sensor length: m
Detector specification: EN 54-11, type A
DIBt approval
Specification

Cable diameter: mm
Cable entry
Maximum tube length
Dimensions: W: 88 mm H: 88 mm D: 21 mm
: W:88 mm H: 88 mm D: 57 mm (with surface mount housing)
Length
Declaration of Performance: DoP-20492130701
Konformität

Accessories

704980 Surface mount housing

Additional information

If the glass pane is replaced with the optionally available plastic pane with reset function, the MCP can be reseted from outside by using the key.

Per standard suitable for flush-mounted installation boxes.

For the surface mounting of the MCP the base from Part No. 704980 to 704985 is required. Please order separately.

Type A definition - direct release acc. to EN 54-11 § 3.4.1 (extract from standard):

Manual fire alarm unit, for which the alarm status is automatically set (additional alarm triggering is not required) after the fragile element has been broken or its position has been changed.
