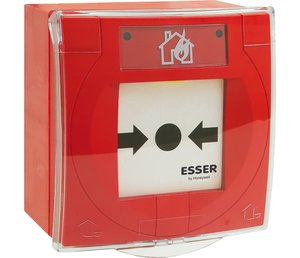

IQ8MCP compact IP 66 / 67, small, red, with isolator glass pane

IQ8MCP compact IP 66 / 67, small, red, with isolator glass pane

Waterproof MCP suitable for esserbus and powered loop connection, with soft address coding, alarm latch and alarm indicator. Without BUS communication, the detector operates as conventional MCP. Detector housing, surface mount housing and transparent cover are included.

The Waterproof Manual Call Point has been designed for use outdoors and in places where moisture can occur. Surface mount housing is provided with knock-out cable entries for M20 cable glands (option) for simplified installation.

Part-No.:: 804961
Approval:: VdS

Features

High IP protection class IP 66 / 67
Integrated loop isolator
Triple key function (test, open, reset)
Plug-in connection clamps
Detectors that are not ready for operation can be marked with the "out of order" label by reversing the enclosed glass pane

Technical Data

Common technical data:
Leistungserklärung
Rated voltage: V AC
Rated frequency
Rated current
Output current
Battery capacity
Operating voltage: 8 ... 42 V DC

Operating voltage: V DC
Operating voltage
Quiescent current
Lichtquelle
Leuchtfarbe

Quiescent current @ 9 V DC: μA
Quiescent current @ 12 V DC
Quiescent current @ 19 V DC: 45 μA
Quiescent current @ 24 V DC
Quiescent current @ FACP battery
Quiescent current @ FACP battery
Quiescent current: μA
Current consumption
Current consumption
Current consumption @ 12 V DC
Current consumption @ 24 V DC
Starting current: mA
Current consumption in the case of failure: mA
Current consumption testmode: mA
Alarm current
Alarm current
Alarm current @ 9 V DC: 18 mA
Alarm current @ 12 V DC
Alarm current @ 24 V DC: mA
Alarm current @ 24 V DC
Alarm current w/o communication curtain: mA
Power consumption
Current consumption for ext. devices: A
Testing capacity
Battery charging
Heat detector response threshold
Load factor
Contact load relay
Contact load
Sound level: dB
Sound level @ 12 V DC
Sound level @ 24 V DC
Sound level
No. of detector/zone: 10 detectors / group; 127 detectors / ring (according to VdS)
Circuit
Display
Operation indicator: LED, green
Alarm display: LED, red and yellow flag
Fault display
Frequency of flash
Lighting energy
Flash color
Luminous intensity


Signal flashing lamp
Range
Connection terminal: max. 1,5 mm² (AWG 30-14)
CO pre-alarm: ppm
CO alarm: ppm
Area to be monitored
Height to be monitored
Air velocity
Sensitivity
Application temperature: -20 °C ... 70 °C
Ambient temperature
Storage temperature: -30 °C ... 75 °C
Air humidity
Air humidity
Type of protection: IP 66 / IP 67

Protection class
Ex. protection
Category
Housing: PC-ASA plastic
Material

Installation
Signal Range
Mounting height wall
Room width
Category ceiling
Mounting height ceiling
Room diameter
Color: red, similar to RAL 3020

Weight: approx. 250 g
Weight
Optisches_Signalbild
Lebensdauer_optisch
Drehfrequenz
Abmessungen
Content
Cable length: m
Maximum sensor length: m
Detector specification: EN 54-11, type A
DIBt approval
Specification

Cable diameter: mm
Cable entry
Maximum tube length
Dimensions: W: 88 mm H: 88 mm D: 57 mm (with surface mount housing)

Length
Declaration of Performance
Konformität

Additional information

Use M20 cable glands with 15 mm connecting thread length and sealing ring, e.g. blueglobe by Pflitsch (Screw joint Part No..: bg 820PA/sealing ring part no.: DRF 220).
