Conventional MCP compact, small, red, with glass pane, IP 66/67

804960 | Conventional MCP compact, small, red, with glass pane, IP 66/67

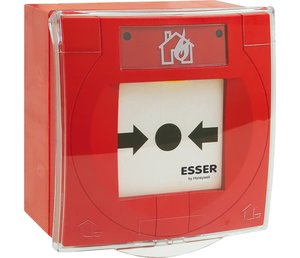

Waterproof MCP including housing and alarm indicator. For connection to a conventional detection zone.

Part-No.:
804960
Approval:
VdS

Features

  • High IP protection class IP 66 / 67
  • Integrated loop isolator
  • Triple key function (test, open, reset)
  • Plug-in connection clamps
  • Detectors that are not ready for operation can be marked with the "out of order" label by reversing the enclosed glass pane

Technical Data

Common technical data:
Leistungserklärung
Rated voltage
V AC
Rated frequency
Rated current
Output current
Battery capacity
Operating voltage
8 ... 30 V DC

Operating voltage
V DC
Operating voltage
Quiescent current
Lichtquelle
Leuchtfarbe

Quiescent current @ 9 V DC
0 μA
Quiescent current @ 12 V DC
Quiescent current @ 19 V DC
μA
Quiescent current @ 24 V DC
Quiescent current @ FACP battery
Quiescent current @ FACP battery
Quiescent current
μA
Current consumption
Current consumption
Current consumption @ 12 V DC
Current consumption @ 24 V DC
Starting current
mA
Current consumption in the case of failure
mA
Current consumption testmode
mA
Alarm current
Alarm current
Alarm current @ 9 V DC
9 mA
Alarm current @ 12 V DC
Alarm current @ 24 V DC
mA
Alarm current @ 24 V DC
Alarm current w/o communication curtain
mA
Power consumption
Current consumption for ext. devices
A
Testing capacity
Battery charging
Heat detector response threshold
Load factor
Contact load relay
Contact load
Sound level
dB
Sound level @ 12 V DC
Sound level @ 24 V DC
Sound level
No. of detector/zone
10 detectors per zone (according to VdS)
Circuit
Display
Operation indicator
Alarm display
red LED and yellow actuation indicator
Fault display
Frequency of flash
Lighting energy
Flash color
Luminous intensity


Signal flashing lamp
Range
Connection terminal
max. 2.5 mm² (AWG 26-14)
CO pre-alarm
ppm
CO alarm
ppm
Area to be monitored
Height to be monitored
Air velocity
Sensitivity
Application temperature
-40 °C ... 70 °C
Ambient temperature
Storage temperature
-40 °C ... 75 °C
Air humidity
< 95 %
Air humidity
Type of protection
IP 66 / IP 67

Protection class
Ex. protection
Category
Housing
PC ASA plastic
Material

Installation
Signal Range
Mounting height wall
Room width
Category ceiling
Mounting height ceiling
Room diameter
Color
red, similar to RAL 3020

Weight
approx. 110 g
Weight
Optisches_Signalbild
Lebensdauer_optisch
Drehfrequenz
Abmessungen
Content
Cable length
m
Maximum sensor length
m
Detector specification
EN 54-11, type A
DIBt approval
Specification

Cable diameter
mm
Cable entry
Maximum tube length
Dimensions
W: 88 mm H: 88 mm D: 21 mm

Length
Declaration of Performance
Konformität

Additional information

Use M20 cable glands with 15 mm connecting thread length and sealing ring, e.g. blueglobe by Pflitsch (Screw joint Part No..: bg 820PA/sealing ring part no.: DRF 220).

Scope of delivery

1 x Spare glass 704960

1 x Plastic spare key 704966

1 x Transparent cover

1 x Surface mount housing
