Features
- Flat design
- Plug-in connection terminals
- Optional terminal
- Triple key function (test, open, reset)
- Detectors that are not ready for operation can be marked with the "Out of order" label by reversing the enclosed glass pane

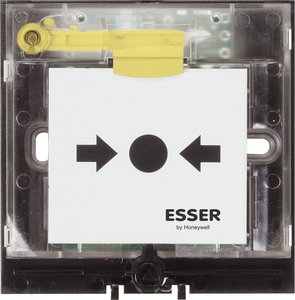

IQ8MCP electronic module
Same as 804971, but without housing.
- Part-No.:
- 804955
- Approval:
- VdS
Technical Data
- Common technical data:
- Leistungserklärung
- Rated voltage
- V AC
- Rated frequency
- Rated current
- Output current
- Battery capacity
- Operating voltage
- 8 ... 42 V DC
- Operating voltage
- V DC
- Operating voltage
- Quiescent current
- Lichtquelle
- Leuchtfarbe
- Quiescent current @ 9 V DC
- μA
- Quiescent current @ 12 V DC
- Quiescent current @ 19 V DC
- 45 μA
- Quiescent current @ 24 V DC
- Quiescent current @ FACP battery
- Quiescent current @ FACP battery
- Quiescent current
- μA
- Current consumption
- Current consumption
- Current consumption @ 12 V DC
- Current consumption @ 24 V DC
- Starting current
- mA
- Current consumption in the case of failure
- mA
- Current consumption testmode
- mA
- Alarm current
- Alarm current
- Alarm current @ 9 V DC
- mA
- Alarm current @ 12 V DC
- Alarm current @ 24 V DC
- mA
- Alarm current @ 24 V DC
- Alarm current w/o communication curtain
- 18 mA
- Power consumption
- Current consumption for ext. devices
- A
- Testing capacity
- Battery charging
- Heat detector response threshold
- Load factor
- Contact load relay
- Contact load
- Sound level
- dB
- Sound level @ 12 V DC
- Sound level @ 24 V DC
- Sound level
- No. of detector/zone
- max. 127 detectors per loop (as per VdS)
- Circuit
- Display
- Operation indicator
- LED, green
- Alarm display
- red LED and yellow actuation indicator
- Fault display
- Frequency of flash
- Lighting energy
- Flash color
- Luminous intensity
- Signal flashing lamp
- Range
- Connection terminal
- max. 2.5 mm² (AWG 26-14)
- CO pre-alarm
- ppm
- CO alarm
- ppm
- Area to be monitored
- Height to be monitored
- Air velocity
- Sensitivity
- Application temperature
- -20 °C ... 70 °C
- Ambient temperature
- Storage temperature
- -30 °C ... 75 °C
- Air humidity
- < 95 %
- Air humidity
- Type of protection
- IP43 (in housing), IP 55 with cover 704965
- Protection class
- Ex. protection
- Category
- Housing
- Material
- Installation
- Signal Range
- Mounting height wall
- Room width
- Category ceiling
- Mounting height ceiling
- Room diameter
- Color
- Weight
- approx. 78 g
- Weight
- Optisches_Signalbild
- Lebensdauer_optisch
- Drehfrequenz
- Abmessungen
- Content
- Cable length
- m
- Maximum sensor length
- m
- Detector specification
- EN 54-11, type A
- DIBt approval
- Specification
- Cable diameter
- mm
- Cable entry
- Maximum tube length
- Dimensions
- W: 88 mm H: 88 mm D: 21 mm
- Length
- Declaration of Performance
- DoP-20492130701
- Konformität
Additional information
If the glass pane is replaced with the optionally available plastic pane with reset function, the MCP can be reseted from outside by using the key.
Per standard suitable for flush-mounted installation boxes.
For the surface mounting of the MCP the base from Part No. 704980 to 704985 is required. Please order separately.
Type A definition - direct release acc. to EN 54-11 § 3.4.1 (extract from standard):
Manual fire alarm unit, for which the alarm status is automatically set (additional alarm triggering is not required) after the fragile element has been broken or its position has been changed.
Scope of delivery
1 x Glass pane 704960
1 x Multilingual paper labels with "Out of order" pictogram
