Features
- Flat design
- Plug-in connection terminals
- Optional terminal
- Triple key function (test, open, reset)
- Detectors that are not ready for operation can be marked with the "Out of order" label by reversing the enclosed glass pane

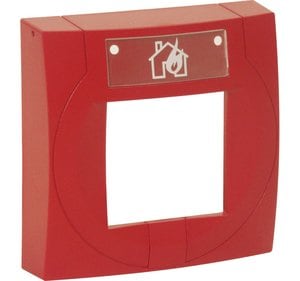

Housing for small MCP, red, similar to RAL 3020
Housings for electronic modules Part No. 80495x.
- Part-No.:
- 704950
Technical Data
- Common technical data:
- Leistungserklärung
- Rated voltage
- V AC
- Rated frequency
- Rated current
- Output current
- Battery capacity
- Operating voltage
- Operating voltage
- V DC
- Operating voltage
- Quiescent current
- Lichtquelle
- Leuchtfarbe
- Quiescent current @ 9 V DC
- μA
- Quiescent current @ 12 V DC
- Quiescent current @ 19 V DC
- μA
- Quiescent current @ 24 V DC
- Quiescent current @ FACP battery
- Quiescent current @ FACP battery
- Quiescent current
- μA
- Current consumption
- Current consumption
- Current consumption @ 12 V DC
- Current consumption @ 24 V DC
- Starting current
- mA
- Current consumption in the case of failure
- mA
- Current consumption testmode
- mA
- Alarm current
- Alarm current
- Alarm current @ 9 V DC
- mA
- Alarm current @ 12 V DC
- Alarm current @ 24 V DC
- mA
- Alarm current @ 24 V DC
- Alarm current w/o communication curtain
- mA
- Power consumption
- Current consumption for ext. devices
- A
- Testing capacity
- Battery charging
- Heat detector response threshold
- Load factor
- Contact load relay
- Contact load
- Sound level
- dB
- Sound level @ 12 V DC
- Sound level @ 24 V DC
- Sound level
- No. of detector/zone
- Circuit
- Display
- Operation indicator
- Alarm display
- Fault display
- Frequency of flash
- Lighting energy
- Flash color
- Luminous intensity
- Signal flashing lamp
- Range
- Connection terminal
- CO pre-alarm
- ppm
- CO alarm
- ppm
- Area to be monitored
- Height to be monitored
- Air velocity
- Sensitivity
- Application temperature
- Ambient temperature
- Storage temperature
- Air humidity
- Air humidity
- Type of protection
- IP 43, IP 55 with 704965
- Protection class
- Ex. protection
- Category
- Housing
- PC ASA plastic housing
- Material
- Installation
- surface mount
- Signal Range
- Mounting height wall
- Room width
- Category ceiling
- Mounting height ceiling
- Room diameter
- Color
- Weight
- approx. 33 g
- Weight
- Optisches_Signalbild
- Lebensdauer_optisch
- Drehfrequenz
- Abmessungen
- Content
- Cable length
- m
- Maximum sensor length
- m
- Detector specification
- DIBt approval
- Specification
- Cable diameter
- mm
- Cable entry
- Maximum tube length
- Dimensions
- W: 88 mm H: 88 mm D: 21 mm
- Length
- Declaration of Performance
- DoP-20492130701
- Konformität
Additional information
The red manual call point housing is available only with the pictogram (as shown) according to EN 54-11.
Please note that according to EN54-11, the label for the MCP must include the symbol of the burning house.
Scope of delivery
1 x Key 704966
