IQ8MCP electronic module with isolator and external detector zone

IQ8MCP electronic module with isolator and external detector zone

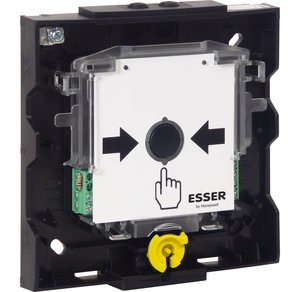

Addressable electronic module suitable for use in the esserbus and powered loop with alarm latch and alarm indicator. Optional connection for conventional MCP. Without BUS connection, the detector operates as conventional MCP. Built-in loop isolator in the manual call point. An external detector zone (D-line) could be connected with up to ten conventional manual call points (internal Alarm resistor for each detector 1 KOhm) - e.g. Part No. 804900 or 804901 to this IQ8 manual call point model and configure required operation with tools 8000. When an alarm is triggered the address and the programmed additional text of the MCP IQ8 to which the conventional zone is connected are displayed automatically. Cable length of the D-line max. 500 meters!

Part-No.:: 804905
Approval:: VdS

Features

Slimline design
Low power consumption
Plug-in connection clamps
Optional terminal clamps
2 x cable entries on top, at the bottom and on the rear panel
Fixing on standard flush mounted installation box
Test function via manual call point service key
Detectors that are not ready for operation can be marked with the "Out of order" label by reversing the enclosed operating front foil

Technical Data

Common technical data:
Leistungserklärung
Rated voltage: V AC
Rated frequency
Rated current
Output current
Battery capacity
Operating voltage: 8 ... 42 V DC

Operating voltage: V DC
Operating voltage
Quiescent current
Lichtquelle
Leuchtfarbe

Quiescent current @ 9 V DC: μA
Quiescent current @ 12 V DC
Quiescent current @ 19 V DC: 45 μA
Quiescent current @ 24 V DC
Quiescent current @ FACP battery
Quiescent current @ FACP battery
Quiescent current: μA
Current consumption
Current consumption
Current consumption @ 12 V DC
Current consumption @ 24 V DC
Starting current: mA
Current consumption in the case of failure: mA
Current consumption testmode: mA
Alarm current
Alarm current
Alarm current @ 9 V DC: mA
Alarm current @ 12 V DC
Alarm current @ 24 V DC: mA
Alarm current @ 24 V DC
Alarm current w/o communication curtain: 18 mA
Power consumption
Current consumption for ext. devices: A
Testing capacity
Battery charging
Heat detector response threshold
Load factor
Contact load relay
Contact load
Sound level: dB
Sound level @ 12 V DC
Sound level @ 24 V DC
Sound level
No. of detector/zone: 10 detectors per zone, 127 detectors/loop (according to VdS)
Circuit
Display
Operation indicator: LED, green
Alarm display: LED, red
Fault display
Frequency of flash
Lighting energy
Flash color
Luminous intensity


Signal flashing lamp
Range
Connection terminal: max. 2.5 mm² (AWG 26-14)
CO pre-alarm: ppm
CO alarm: ppm
Area to be monitored
Height to be monitored
Air velocity
Sensitivity
Application temperature: -20 °C ... 70 °C
Ambient temperature
Storage temperature: -30 °C ... 75 °C
Air humidity: < 95 %
Air humidity
Type of protection: IP 44 (in housing), IP 55 (with accessory)

Protection class
Ex. protection
Category
Housing: PC ASA plastic
Material

Installation
Signal Range
Mounting height wall
Room width
Category ceiling
Mounting height ceiling
Room diameter
Color

Weight: approx. 236 g (in housing)
Weight
Optisches_Signalbild
Lebensdauer_optisch
Drehfrequenz
Abmessungen
Content
Cable length: m
Maximum sensor length: m
Detector specification: EN 54-11, type B
DIBt approval
Specification

Cable diameter: mm
Cable entry
Maximum tube length
Dimensions: W: 133 mm H: 133 mm D: 36 mm

Length
Declaration of Performance: DoP-20489130701
Konformität
