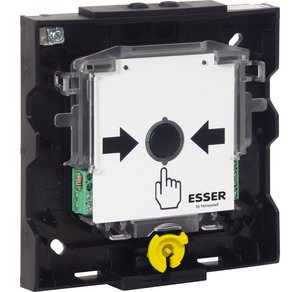

Conventional MCP electronic module w/o snap-on function

804902 | Conventional MCP electronic module w/o snap-on function

Same as 804900, but without snap-on function.

Part-No.:
804902
Approval:
VdS with blue housing 704901

Features

  • Slimline design
  • Low power consumption
  • Plug-in connection clamps
  • Optional terminal clamps
  • 2 x cable entries on top, at the bottom and on the rear panel
  • Fixing on standard flush mounted installation box
  • Test function via manual call point service key
  • Detectors that are not ready for operation can be marked with the "Out of order" label by reversing the enclosed operating front foil

Technical Data

Common technical data:
Leistungserklärung
Rated voltage
V AC
Rated frequency
Rated current
Output current
Battery capacity
Operating voltage
8 ... 30 V DC

Operating voltage
V DC
Operating voltage
Quiescent current
Lichtquelle
Leuchtfarbe

Quiescent current @ 9 V DC
μA
Quiescent current @ 12 V DC
Quiescent current @ 19 V DC
μA
Quiescent current @ 24 V DC
Quiescent current @ FACP battery
Quiescent current @ FACP battery
Quiescent current
μA
Current consumption
Current consumption
Current consumption @ 12 V DC
Current consumption @ 24 V DC
Starting current
mA
Current consumption in the case of failure
mA
Current consumption testmode
mA
Alarm current
Alarm current
Alarm current @ 9 V DC
9 mA
Alarm current @ 12 V DC
Alarm current @ 24 V DC
mA
Alarm current @ 24 V DC
Alarm current w/o communication curtain
mA
Power consumption
Current consumption for ext. devices
A
Testing capacity
Battery charging
Heat detector response threshold
Load factor
Contact load relay
Contact load
Sound level
dB
Sound level @ 12 V DC
Sound level @ 24 V DC
Sound level
No. of detector/zone
10 detectors per zone (according to VdS)
Circuit
Display
Operation indicator
Alarm display
LED, red
Fault display
Frequency of flash
Lighting energy
Flash color
Luminous intensity


Signal flashing lamp
Range
Connection terminal
max. 2.5 mm² (AWG 26-14)
CO pre-alarm
ppm
CO alarm
ppm
Area to be monitored
Height to be monitored
Air velocity
Sensitivity
Application temperature
-40 °C ... 70 °C
Ambient temperature
Storage temperature
-40 °C ... 75 °C
Air humidity
< 95 %
Air humidity
Type of protection
IP 44 (in housing), IP 55 (with accessory)

Protection class
Ex. protection
Category
Housing
PC ASA plastic
Material

Installation
Signal Range
Mounting height wall
Room width
Category ceiling
Mounting height ceiling
Room diameter
Color

Weight
approx. 236 g (with housing)
Weight
Optisches_Signalbild
Lebensdauer_optisch
Drehfrequenz
Abmessungen
Content
Cable length
m
Maximum sensor length
m
Detector specification
EN 54-11, Type B
DIBt approval
Specification

Cable diameter
mm
Cable entry
Maximum tube length
Dimensions
W: 133 mm H: 133 mm D: 36 mm

Length
Declaration of Performance
DoP-20195130701
Konformität

Additional information

This electronic module is only approved as an electric stop push-button for gas extinguishing systems when combined with the blue housing (Part No. 704901). The electronic module Part No. 804902 with blue housing complies with the EN 12094-3 standard and therefore it can be used as an electric stop push-button for gas extinguishing systems in dry, non-hazardous branches.

In case the manual call point is used as a "house alarm" push-button, pre-printed labels are provided in the manual call point package.

Take note, for a LARGE MCP you have to order the electronic module and the MCP housing separately to have a complete MCP.

Scope of delivery

Electronic module with one piece operating foil printed „ESSER by Honeywell“ and turnable „Out of Order“ pictogram.

Product Data Sheet
