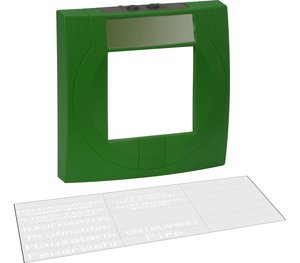

MCP housing large with glass pane, green, similar to RAL 6002

Features

Slimline design
Low power consumption
Plug-in connection clamps
Optional terminal clamps
2 x cable entries on top, at the bottom and on the rear panel
Fixing on standard flush mounted installation box
Test function via manual call point service key
Detectors that are not ready for operation can be marked with the "Out of order" label by reversing the enclosed operating front foil

Technical Data

Common technical data:
Leistungserklärung
Rated voltage: V AC
Rated frequency
Rated current
Output current
Battery capacity
Operating voltage

Operating voltage: V DC
Operating voltage
Quiescent current
Lichtquelle
Leuchtfarbe

Quiescent current @ 9 V DC: μA
Quiescent current @ 12 V DC
Quiescent current @ 19 V DC: μA
Quiescent current @ 24 V DC
Quiescent current @ FACP battery
Quiescent current @ FACP battery
Quiescent current: μA
Current consumption
Current consumption
Current consumption @ 12 V DC
Current consumption @ 24 V DC
Starting current: mA
Current consumption in the case of failure: mA
Current consumption testmode: mA
Alarm current
Alarm current
Alarm current @ 9 V DC: mA
Alarm current @ 12 V DC
Alarm current @ 24 V DC: mA
Alarm current @ 24 V DC
Alarm current w/o communication curtain: mA
Power consumption
Current consumption for ext. devices: A
Testing capacity
Battery charging
Heat detector response threshold
Load factor
Contact load relay
Contact load
Sound level: dB
Sound level @ 12 V DC
Sound level @ 24 V DC
Sound level
No. of detector/zone
Circuit
Display
Operation indicator
Alarm display
Fault display
Frequency of flash
Lighting energy
Flash color
Luminous intensity


Signal flashing lamp
Range
Connection terminal
CO pre-alarm: ppm
CO alarm: ppm
Area to be monitored
Height to be monitored
Air velocity
Sensitivity
Application temperature
Ambient temperature
Storage temperature
Air humidity
Air humidity
Type of protection: IP 44

Protection class
Ex. protection
Category
Housing: ASA plastic
Material

Installation: surface mount
Signal Range
Mounting height wall
Room width
Category ceiling
Mounting height ceiling
Room diameter
Color

Weight: approx. 83 g (w/o electronic module)
Weight
Optisches_Signalbild
Lebensdauer_optisch
Drehfrequenz
Abmessungen
Content
Cable length: m
Maximum sensor length: m
Detector specification
DIBt approval
Specification

Cable diameter: mm
Cable entry
Maximum tube length
Dimensions: W: 133 mm H: 133 mm D: 36 mm

Length
Declaration of Performance
Konformität

Accessories

704910 Spare glass for manual call points

769910 Plastic spare key

769911 Metal key for large MCP

769916 Service key

704917 Option IP 55 shrink sleeve for large MCP 80490x

704911 Universal foil for large MCP housing ABS

Additional information

Used e.g. for after flooding for gas extinguishing systems with the respective inscription.

Scope of delivery

Labeling foil set (white) for various international applications.
