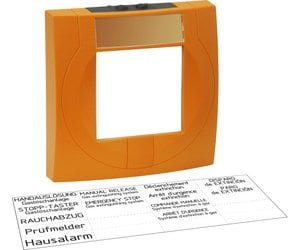

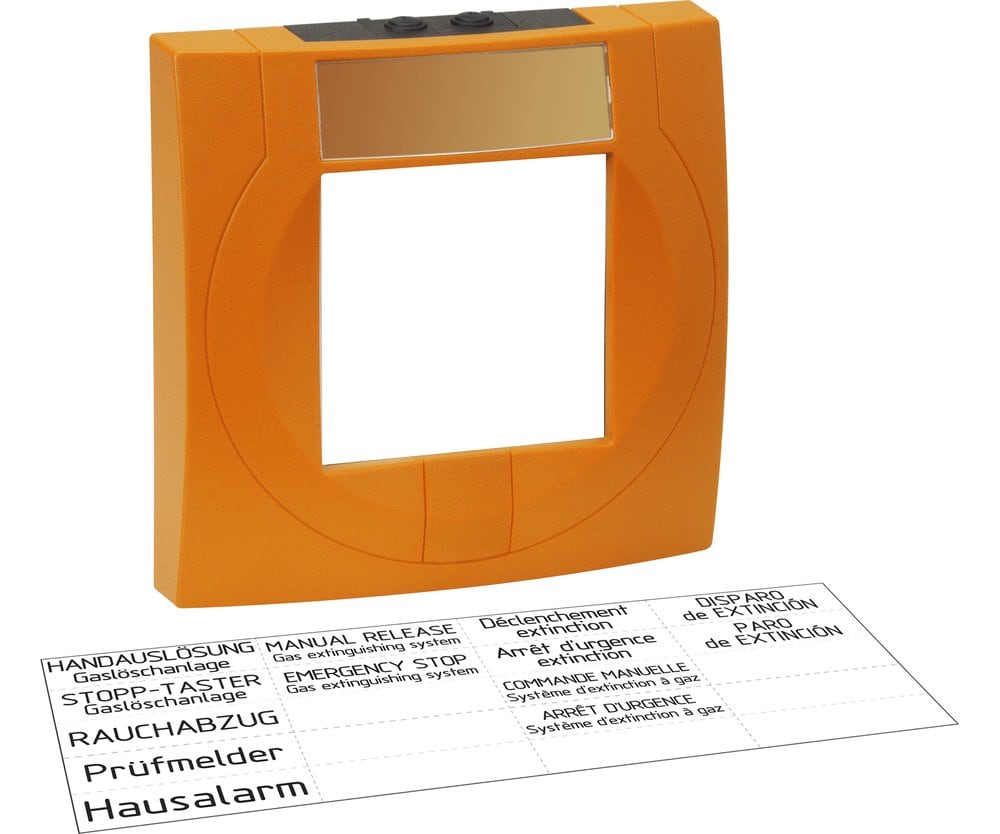

Housings for electronic module 80490x.
704910 Spare glass for manual call points
769910 Plastic spare key
769911 Metal key for large MCP
769916 Service key
704917 Option IP 55 shrink sleeve for large MCP 80490x
704911 Universal foil for large MCP housing ABS
Type B definition - double action in accordance with EN 54-11 § 3.4.2
(Excerpt taken from EN standard):
Manual fire alarm unit, for which the alarm status cannot be set until an alarm is additionally triggered by the user after the fragile element has been broken or its position, has been changed.
Take note, for a LARGE MCP you have to order the electronic module and the MCP housing separately to have a complete MCP.
Not all possible combinations of electronic modules and housings are approved by VdS. When using the manual call point as a fire detector for manual actuation in compliance with the EN 54-11 standards, a red housing together with the provided pictogram must be used. When using the manual call point in heat exhaust or extinguishing system areas, the appropriate housing color must be chosen in compliance with the correct standards.
Wago clamps for looping in wires, e.g. type 273-100 (0.5 mm² - 1.5 mm²) or 273-104 (0.75 mm² - 2.5 mm²) can be mounted on the detector base.
Take note, for a LARGE MCP you have to order the electronic module and the MCP housing separately to have a complete MCP.
Labeling foil set (black) for various international applications.
