Converter RS232/RS485

764852 | Converter RS232/RS485

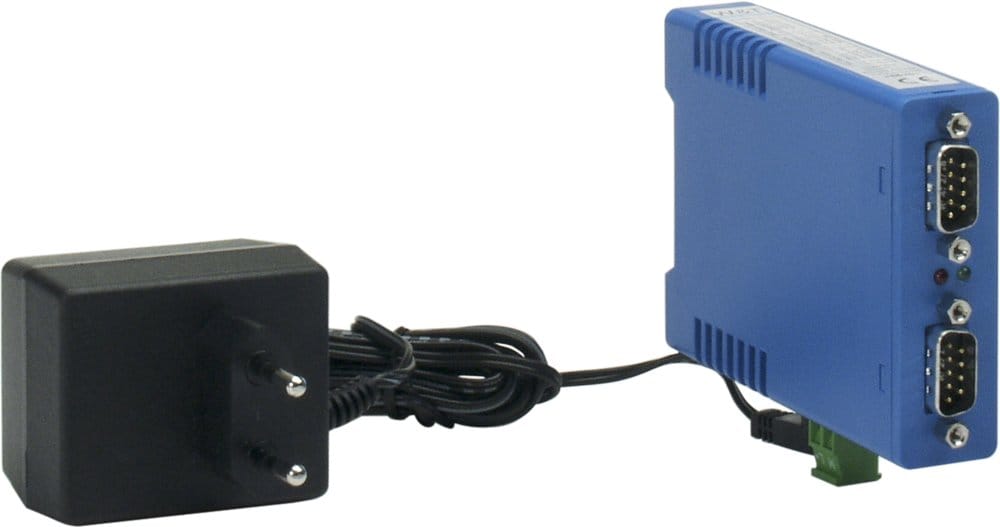

For converting a serial interface from RS 232 to RS 485 and vice versa. Suitable for installation rail mounting.

Part-No.:
764852

Features

  • RS 485, 2 and 4 wire compatible
  • RS 485, automatic mode
  • No re-configuration of transmission parameters required
  • Min. 1 kV electrical isolation
  • Top hat rail housing according to DIN EN 50022-35
  • Suitable as "non-intelligent" converter for RS 485 field buses (e.g. profibus, CS31, etc.) <> RS 232

Technical Data

Rated voltage
V
Rated voltage
Rated voltage
V AC
Rated current
Rated frequency
Operating voltage
12 ... 24 V DC
Operating voltage
V DC
Exciting voltage
V DC
Exciting current
mA
Quiescent current
mA

Quiescent current @ 12 V DC
Alarm current @ 12 V DC
Current consumption
Current consumption
Current consumption @ 12 V DC
approx. 85 mA
Current consumption @ 24 V DC
Quiescent current @ 9 V DC
μA
Alarm current @ 9 V DC
mA
Quiescent current @ 19 V DC
μA
Starting current
mA
Current consumption in the case of failure
mA
Power consumption
Output voltage
Output current
Current consumption for ext. devices
A
Battery capacity
Contact load relay

Contact load
max. cont. operating voltage a.c.
V AC
max. cont. operating voltage d.c.
V DC
Nominal load current a.c.
A
Nom. discharge current (80/20)/line
A
Nom. discharge current (80/20) line/line
kA
Nom. discharge current (80/20) line/lPG
kA
Total nom. discharge current
kA
Total discharge current (8/20) [L+N-PE]
kA
Total lightning imp. current (10/350)
kA
Lightning imp. current (10/350)/line
kA
Combined impulse
kV
Combined impulse [L+N-PE]
kV
Voltage protection level [L/N-PE]
V
Voltage protection level [L-N]
V
Response time [L/N-PE]
ns
Response time [L-N]
ns
Insertion loss
Sound level
Display
Frequency of flash
Hz
Lighting energy
Range
Connection terminal
Area to be monitored
Height to be monitored
Application temperature
Ambient temperature
Storage temperature
Air humidity
Air humidity
Ex-category
Ex. protection
Type of protection
Housing
plastic small-design housing
Material
Color
Weight
approx. 500 g (incl. power supply)
Weight

Cable length
m
Cable diameter
mm
Maximum sensor length
m
Rückseitige Bodenplatte
mm
Detector specification
EC-type examination certificate
Dimensions
W: 105 mm H: 75 mm D: 22 mm


Declaration of Performance

Scope of delivery

1 x RS 232/RS 485

1 x Power supply unit
