Power supply extension FM 24 V/12 Ah

Power supply extension FM 24 V/12 Ah

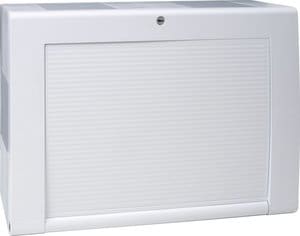

Auxiliary power supply to expand the system's internal power supply. The auxiliary power supply supplements the existing panel power supply via a pluggable wiring with an additional 150 W. Two 12 V/12 Ah batteries, are located in the housing. Two 12 Ah batteries can be connected via an additional FX808314 housing.

Part-No.:: FX808363.IN
Approval:: FM

Technical Data

Rated voltage: 230 V AC
Rated input voltage
Rated input current
Ripple
Output power *8
Output fuse (250V)
Indication Output voltage
Efficiency
Type of installation
Regulations
Overvoltage category
Protection class
Installation location
Rated frequency: 50 Hz ... 60 Hz
Rated current: 0,7 A
Operating voltage
Output voltage: 24 V DC
Output current: max. 6 A (total)
Output current
Rated Output Current: A
Quiescent current

Current consumption
Current consumption for ext. devices: 3 A
Battery capacity: 4 x 12 V / 12 Ah (max. 4 x 12 V/12 Ah)
Emergency power supply: V DC
Contact load relay
Efficiency: %
Cooling
Ambient temperature: -5 °C ... 45 °C
Storage temperature: -10 °C ... 50 °C
Air humidity: < 95 % (non-condensing)
Type of protection: IP 30
Housing: ABS, 10% glass fiber reinforced, V - 0
Color: gray, similar to Pantone 538
Weight
Weight: approx. 6,2 kg

Cable length: m
Dimensions: W: 450 mm H: 320 mm D: 185 mm


Declaration of Performance
Approval

Accessories

FX808330 3-way plug

FX808455 Cable EC cascading 2.5 m

Additional information

Optional modules:

018011 batteries, max. 2 x 12 V/12 Ah (24 V/12 Ah)

FX808314 battery expansion enclosure for 4 x 12 V/12 Ah

Only the same types of batteries (manufacturer, date of manufacture, capacity, state of charge) may be connected to a power supply module.

Scope of delivery

Expansion included 1 x rear panel, 1 x housing frame, 1 x battery holder for 2 x 12 V/12 Ah (including support EVA), 1 x power supply module 24 V DC/150 W, 1 x Neutral Front (Front of enclosure without display and control elements ) and 1 x pluggable connection cable.
