FACP FlexES Control FM (18 loops)

FX808397.IN | FACP FlexES Control FM (18 loops)

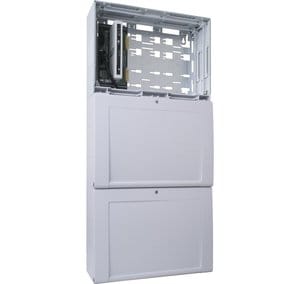

Hardware FlexES Control FM basic configuration, with software support for 18 loops.

The FlexES Control expansion can, however, also be adapted to individual requirements by using separately provided components. Depending on the system's design, it might be necessary to use an expansion housing unit for the batteries and an additional power supply unit. The FlexES System provides a Master & Slave Control Module (CPU), galvanically isolated loop modules and up to three cascadable and redundant power supply units each with 150 W (same or different main). As well it’s delivered with a dust filter, which is proven in use in typical applications with dust-laden environment and/or sanddust regions.

Part-No.:
FX808397.IN
Approval:
FM

Features

  • Master/slave CPU by redundant control module
  • Combinable loop/spur technology with decentralized intelligence
  • Freely configurable functionality of modules
  • 4 free programmable dry contacts and 1 output for alarm transmission unit (ATU)
  • Increased availability via degraded mode function of the loop modules
  • Degraded mode for monitored areas up to 48,000 m² or more than 512 fire detectors acc. to the German Planning standard VDE 0833 and/or VdS 2095
  • USB, RS 485, TTY interfaces onboard
  • Direct output of the proprietary EDP communications protocol (Data Protocol) via interface RS 485
  • Operation of loop-powered alarm signaling devices (optical/acoustic/voice) in different alarm zones via esserbus-PLus
  • Cascadable power supply to 450 W according to EN 54-4
  • Loop length up to 3.5 km (esserbus)
  • Operation of different input/output gateways
  • Event memory with 10,000 entries
  • Integrated interfaces for operation of required fire brigade periphery, e.g. fire brigade indicating panel, fire brigade operating unit
  • Operation of VdS-approved wireless components with convenient field intensity measurement
  • Parameterization, calibration and programming directly via USB
  • Galvanic isolation of analog loops possible
  • Up to 1,000 control zones


In connection with display and operating unit
  • Display and operating unit with 5.7" TFT display
  • Capacitive keyboard for touch-sensitive operation
  • Program-controlled night design with interactive keyboard menu


Additional features for powered loop
  • BUS supplied, synchronously controlled, acoustic alarm signaling devices as per DIN EN 54 - 3 with alarm tone as per DIN 33404
  • Up to 32 powered loop IQ8Alarm / IQ8Alarm Plus devices per loop
  • Up to 64 powered loop IQ8Alarm Plus So / FSo devices per loop
  • Up to 48 IQ8Quad with alarm device per loop

Technical Data

Rated voltage
230 V AC
Zertifizierung
Leistungsaufnahme und DAS-Ausgang unter 48 V
Leistungsaufnahme und DAS-Ausgang unter 24 V
DAS Ausgangsspannung (nur positive Sicherheit)
Eingang der Spannungsversorgung
Spannungsfernbedienungseingang mit Spannungsemission
Spannung_Fernbedienungseingang mit Stromunterbrechung
Rated voltage
110 ... 230 V AC
Rated frequency
50 Hz ... 60 Hz
Nominal frequency
Hz
Rated current
0,8 A
Operating voltage
Operating voltage
V DC
Operating voltage
Output voltage
24 V DC
Rated current
Output voltage
Output current
Output current
Quiescent current
approx. 192 mA (base model w/o display and operating unit)

approx. 348 mA (base model with display and operating unit)
Quiescent current @ 12 V DC
Current consumption
Current consumption
Current consumption @ 12 V DC
Current consumption @ 24 V DC
Alarm current @ 12 V DC
Current consumption for ext. devices
3 A
Belastbarkeit pro Ausgang
Power consumption
W
Battery
Battery capacity
4 x 12 V / 24 Ah

Resolution
Contact load relay
Contact load
Connection terminal
Holding power
N
Cable entry
Application temperature
Ambient temperature
-5 °C ... 45 °C
Storage temperature
-10 °C ... 50 °C
Ambient conditions
Air humidity
Air humidity
< 95 % (non-condensing)
Type of protection
IP 30
Housing
ABS, 10% glass fiber reinforced, V - 0
Material
Color
gray, similar to Pantone 538

Color front plate
Height
Weight
Weight
approx. 15,1 kg (incl. neutral front)

approx. 17 kg (incl. operating unit)
FO-Connector
Cable length
m
Cable
Dimensions
W: 450 mm H: 960 mm D: 185 mm


Declaration of Performance
Specification
Approval
Voltage supply
Ausgangsspannung typisch
Power output
W
Stromaufnahme max.
Akkumulator
Inputs
Outputs
Luftfeuchtigkeit
Montageart
Schaltleistung max.
Schraubklemmen Drahtquerschnitt max.
Stromaufnahme typisch
Versorgungsspannung Alarmgeberkreise
Ausgangsstrom max.
Versorgungsspannung
V
Versorgungsspannung_a
Stromaufnahme bei 24 V
Nennausgangsleistung
min. Ausgangsstrom
max. Ausgangsstrom

Additional information

Expandable to a maximum of eighteen module slots via optional extension module carriers.

Space for required batteries in one or several extension housings.

The following external printers could be switched on FlexES Control:

- Epson LQ300

- MEFA (Part No. FX808353, FX808354)

Optionally: the display and operating unit, labeling set or the neutral front must be ordered separately.

Max. 18 micromodules, up to 18 esserbus analog loops and expandable up to 127 loop devices (per loop) in mixed mode / loop powered and non-loop powered (system supports up to 2,286 digital loop addresses in total).

Scope of delivery

Set includes 1 x power supply module, 1 x plugin connection cable, 1 x PS connection module, 1 x rear panel 1, 1 x control module, 1 x housing frame and 1 x base module carrier, 1 x set air filter

Product Data Sheet

Version: 2024-12
