Features
- Input: TTY from the internal FACP interface
- Output: DUAL RS 485 to the FAT interface

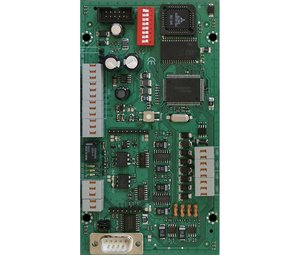

Adapter module ADP-N3E
Microprocessor-controlled module for installation (mounting rail) in System 8000 or IQ8Control fire alarm panels. In compliance with DIN 14675, the TTY interface can be used for redundant transmission when the adaptor is connected and when the fire brigade indicating panel FAT 3000 is used for initially informing the fire brigade. Additional text (> 4,000 texts) can be programmed using a PC with serial interface connection.
- Part-No.:
- 784744
Technical Data
- Versorgungsspannung
- V
- Material
- Operation temperature
- Tasterbelastung
- Operating voltage
- 8 ... 30 V DC
- Operating voltage
- V DC
- Quiescent current
- Quiescent current @ 12 V DC
- approx. 55 mA
- Quiescent current @ 24 V DC
- Alarm current @ 12 V DC
- Current consumption
- Current consumption
- Current consumption @ 12 V DC
- Current consumption @ 24 V DC
- Current consumption for ext. devices
- A
- Current consumption
- mA
- Battery capacity
- Contact load relay
- 30 V DC / 1 A
- Display
- Frequency of flash
- Hz
- Lighting energy
- Resolution
- Screen diagonal
- cm
- Data transmission speed
- Connection terminal
- max 2 x 0.8 mm²
- Ambient temperature
- -5 °C ... 40 °C
- Storage temperature
- -10 °C ... 60 °C
- Air humidity
- Air humidity
- Type of protection
- Installation
- Housing
- Color
- Empfohlene_Raumtemperatur
- Weight
- approx. 100 g
- Weight
- Cable length
- m
- Rückseitige Bodenplatte
- mm
- Dimensions
- W: 80 mm H: 150 mm D: 30 mm
- Declaration of Performance
- Maximale_Ladung
- Temperature range
- Mobilfunkfrequenzen
Additional information
The top hat rail module (Part No. 788652) and the module housing for snap-on mounting rail (Part No. 788603.10) can be used for installation. The interface is compatible with FAT 3000 (Part No. 784743). Power is supplied by the fire alarm panel or an external power supply unit. Maximum data line length: 800 m.
