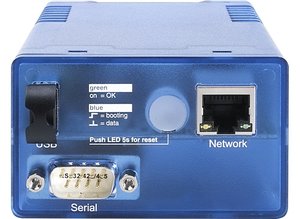

ESSER Remote Access - ERA for FlexES Control

FX808080 | ESSER Remote Access - ERA for FlexES Control

The Web-based alarm management enables display of alarms from the FACP to mobile devices such as tablets, smartphones or PCs. Display of alarms, malfunctions, cutoffs and technical alarms in the form of texts and/or charts. The Apps are available for Android and iOS.

Take note, by default the application program provides only "indication" of the system, this is in most of the cases required. Default remote "operation" could be a risk with respect to cyber crime.

An application software with the full remote "indication & operation" function is available on demand, and should be used onyl on secured sites (firewall, etc.). Please direct your inquiry for the the full managed solution to our local sales representative.System requirements:

- Serial interface of the FACP fire brigade peripherals

- Log contents (e.g. zone / detector, texts)

- Network access (LAN)

- Internet access (DSL) as needed

- Mobile access (GSM) as needed

- Mobile Service (closed user group) as needed

- Availability of the server box from the Internet when necessaryOptional:

- ADP4000 / FAT4000 as a gateway

- UMTS router

Part-No.:
FX808080

Features

  • Program and data storage in the server box on the property
  • Server box power supply via the FACP, separate plug-in power supply or Power over Ethernet
  • Activation via FBIP or ADP
  • Visualization of FACP conditions via app and/or browser
  • Graphic display of an FBIP surface
  • FBOP display with FBOP functionality (selectable key function)
  • Administration via browser by operator or maintenance firm (access rights etc.)
  • Overview display of FACP no., detector zone, detectors
  • Signal display by configurable code table (fire, malfunction, cutoff, technical alarms, etc.)
  • Display of property-specific fire service route maps (PDF, JPG)
  • Display of additional property information (Text, PDF, JPG)
  • App download via Playstore (Android) or Appstore (iOS)
  • Notification services (with use of the app) , e.g. unlimited E-mail or Short Message Service (SMS depends on local provider). Furthermore you can create notification per zone.
  • Notice of incoming and outgoing events in an independent event memory
  • Connection to existing IP network cameras
  • Review mode for maintenance support with date stamping, location control, maintenance instructions, document transfer, long-term memory, memo function, maintenance protocol report in accordance with DIN14675
  • Property data available in offline mode
  • Integrated property management

Technical Data

Versorgungsspannung
V
Material
Operation temperature
Tasterbelastung
Operating voltage
24 ... 48 V DC
Operating voltage
V DC
Quiescent current

Quiescent current @ 12 V DC
Quiescent current @ 24 V DC
Alarm current @ 12 V DC
Current consumption
Current consumption
Current consumption @ 12 V DC
Current consumption @ 24 V DC
approx. 60 mA
Current consumption for ext. devices
A
Current consumption
mA
Battery capacity
Contact load relay

Display
Frequency of flash
Hz
Lighting energy
Resolution
Screen diagonal
cm
Data transmission speed
Connection terminal
Ambient temperature
0 °C ... 65 °C
Storage temperature
-40 °C ... 85 °C
Air humidity
Air humidity
Type of protection
Installation
top hat rail mounting
Housing
Color
Empfohlene_Raumtemperatur
Weight
approx. 140 g
Weight

Cable length
m
Rückseitige Bodenplatte
mm
Dimensions
W: 45 mm H: 75 mm D: 105 mm


Declaration of Performance
Maximale_Ladung
Temperature range
Mobilfunkfrequenzen

Accessories

FX808384/FX808385 Control panels parallel display ZPA3000

FX808081 Redundancy adapter ADP4000

Additional information

For full functionality of the mobile service "Closed User Group" is necessary.

Scope of delivery

Incl. Plug-in power supply unit 230 V AC, information sheet, USB flash drive with documentation and software
