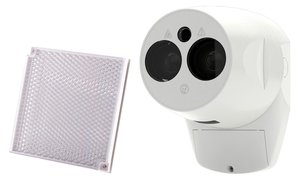

The self-aligning linear smoke detector Fireray ONE consists of the detector unit and a prism reflector. Connection to the loop and resetting are carried out via the esserbus transponder (Part No. 808623.40).
The detector unit contains the infrared transmitter and receiver and operates at a range of 5 to 50m when using the prism reflector.
The Fireray ONE is mounted at least 0.3 m below the ceiling and its reflector with the same distance from the ceiling opposite.
Via the control panel integrated in the detector unit, a visible laser is aligned with the prism reflector and, at the push of a button, the linear smoke detector aligns itself. Everything can be done by one person alone without any special tools.
Integrated Light Cancellation Technology™ prevents false alarms that can be generated by sunlight and artificial light sources.
Building Movement Tracking™ provides continuous alignment as the building moves or warps due to temperature changes.
