Li-Ion Tamer combined controller

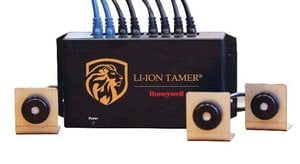

LT-CTR-C-HON | Li-Ion Tamer combined controller

The Li-Ion Tamer Rack Monitoring system is a device that monitors lithium-ion battery off-gas events. Off-gas events occur early in the failure mode of lithium-ion batteries and very early detection of these events allow proper mitigation steps to be taken to avoid a catastrophic thermal runaway failure. Up to 15 Off-gas sensors are connected to the controller that contains proprietary logic to diagnose when and where battery off-gas events have occurred. It has digital and Modbus serial outputs that can be used to electrically isolate the battery system and activate the ventilation system.

Part-No.:
LT-CTR-C-HON

Features

  • Up to 15 sensors/controller
  • Early warning of lithium-ion battery failures
  • Enable thermal runaway prevention with proper mitigation actions
  • Single cell failure detection without electrical or mechanical contact of cells
  • Extended product lifetime
  • Calibration-free product
  • Highly reliable output signal
  • Low power consumption
  • Compatible with all lithium-ion battery form factors and chemistries
  • Easy installation
  • Independent and redundant perspective on battery health
  • Auto diagnostic capabilities
  • Reduction/removal of false positive signals
  • Several communication protocols including digital outputs and Modbus serial communication

Technical Data

Operating voltage
12 ... 28 V DC
Hochgeschwindigkeitsreaktionszeit
Explosionserkennung
Zulassung für explosionsgefährdete Bereiche
Spektrale Empfindlichkeit
Reaktionszeit_a
Empfindlichkeitsbereiche
Erfassungsbereich
Contact Ausgänge
Contact Current
Sensoren pro Hub
Sensoren pro Controller
Hubs pro Controller
Angesaugte Lufttemperatur
Länge der Abzweigleitung
Lineare Rohrlänge
Ansaugöffnungen
Operation temperature
Anzahl_der_Relaisausgänge
Indication Output voltage
Nominal frequency
Hz
Rated voltage

Operating voltage
V DC
Operating voltage
Voltage supply
Quiescent current
Quiescent current @ 9 V DC
Quiescent current @ 12 V DC
Quiescent current @ 19 V DC
Quiescent current @ 24 V DC
Ruhestrom @ 28 V DC_comp
Quiescent current @ FACP battery
Quiescent current @ FACP battery

Current consumption
Alarmstrom @ 28 V DC_comp
Current consumption @ 12 V DC
Current consumption @ 24 V DC
Current consumption
Power consumption @ 5 V DC
Power consumption @ 12 V DC
1,4 W (no sensors), 5,6 W (fully populated, 15 sensors)
Power consumption @ 24 V DC
2,4 W (no sensors), 6,6 W (fully populated, 15 sensors)
Alarm current @ 9 V DC
Alarm current @ 12 V DC
Alarm current @ 24 V DC
Starting current @ 24 V DC
Starting current
Current consumption in the case of failure
Output current
A
Power consumption
Current consumption for ext. devices
A
Battery capacity
Contact load
Contact load relay
Sensitivity
Sound level
Sound level @ 24 V DC
Display
Frequency of flash
Hz
Lighting energy
Range
Connection terminal
Maximum tube length
Area to be monitored
Height to be monitored
Alignment angle
Unempfindlichkeit gegenüber Gebäudebewegungen
Air velocity
Application temperature
Response temperature
Ambient temperature
-10 °C ... 60 °C
Storage temperature
Wavelength
nm
Connection
Sampled Air Temperature
Air humidity
< 5 % (non condensing)
Air humidity
Ex-category
Ex. protection
Type of protection

Housing
Type
Material

Color
Weight
Weight

Luftfeuchtigkeit
Cable length
m
Maximum sensor length
m
Rückseitige Bodenplatte
mm
Detector specification
EC-type examination certificate
Specification

Dimensions
W: 210 mm H: 63 mm L: 113 mm


Declaration of Performance
Approval

Accessories

LT-SEN-M Monitoring sensor

LT-SEN-R Reference sensor

LT-AC-PCL 10' Power Cable

LT-ACC-DCL 10' Digital Output Cable

LT-ACC-MCL-25 25' Monitoring Sensor Cable (RJ45 Black)

LT-ACC-MCL-50 50' Monitoring Sensor Cable (RJ45 Black)

LT-ACC-MCL-100 100' Monitoring Sensor Cable (RJ45 Black)

LT-ACC-RCL-25 25' Reference Sensor Cable (RJ45 Blue)

LT-ACC-RCL-50 50' Reference Sensor Cable (RJ45 Blue)

LT-ACC-RCL-100 100' Reference Sensor Cable (RJ45 Blue)

LT-ACC-CCL-1 1' Controller Daisy Chain Cable (RJ45 Grey)

LT-ACC-CCL-3 3' Controller Daisy Chain Cable (RJ45 Grey)

LT-ACC-CCL-25 25' Controller Daisy Chain Cable (RJ45 Grey)

LT-ACC-IPA MODBUS TCP/IP Adapter

LT-ACC-SCL MODBUS Serial Cable

LT-ACC-RLY Form C Relay

LT-ACC-TST DEC Bump Test Bottle
