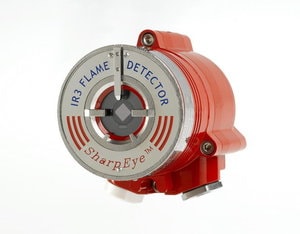

Triple IR (IR3) Flame Detector Ex approved

782431 | Triple IR (IR3) Flame Detector Ex approved

Three-channel IR flame detector incl. BIT (Built-in-Test) of class 1 for the detection of flames with Hydrocarbon content. Adjustment range in four steps with a quick response within 5 seconds with a maximum range of 65 m under test fire conditions. As class 1 flame detector up to 26 m mounting height (wall mounting) or max. 45 m with vertical Ceiling mounting.

Part-No.:
782431

Features

  • Long-range monitoring
  • Automatic self-test
  • Potential-free relay outputs 5A / 30V/DC or 250V/AC for: Alarm, fault and additional function and aluminium housing with red epoxy Stove enamelling
  • M25 thread for cable gland
  • Sensor type: 3-channel infrared sensor

Technical Data

Operating voltage
18 ... 32 V DC
Hochgeschwindigkeitsreaktionszeit
Explosionserkennung
Zulassung für explosionsgefährdete Bereiche
Spektrale Empfindlichkeit
Reaktionszeit_a
Empfindlichkeitsbereiche
Erfassungsbereich
Contact Ausgänge
Contact Current
Sensoren pro Hub
Sensoren pro Controller
Hubs pro Controller
Angesaugte Lufttemperatur
Länge der Abzweigleitung
Lineare Rohrlänge
Ansaugöffnungen
Operation temperature
Anzahl_der_Relaisausgänge
Indication Output voltage
Nominal frequency
Hz
Rated voltage

Operating voltage
V DC
Operating voltage
Voltage supply
Quiescent current
Quiescent current @ 9 V DC
Quiescent current @ 12 V DC
Quiescent current @ 19 V DC
Quiescent current @ 24 V DC
Ruhestrom @ 28 V DC_comp
Quiescent current @ FACP battery
Quiescent current @ FACP battery

Current consumption
90 mA and 105 mA with window heating (quiescient); 130 mA and 160 mA with window heating (alarm)
Alarmstrom @ 28 V DC_comp
Current consumption @ 12 V DC
Current consumption @ 24 V DC
Current consumption
Power consumption @ 5 V DC
Power consumption @ 12 V DC
Power consumption @ 24 V DC
Alarm current @ 9 V DC
Alarm current @ 12 V DC
Alarm current @ 24 V DC
Starting current @ 24 V DC
Starting current
Current consumption in the case of failure
Output current
A
Power consumption
Current consumption for ext. devices
A
Battery capacity
Contact load
Contact load relay
Sensitivity
Sound level
Sound level @ 24 V DC
Display
Frequency of flash
Hz
Lighting energy
Range
Connection terminal
Maximum tube length
Area to be monitored
Height to be monitored
Alignment angle
Unempfindlichkeit gegenüber Gebäudebewegungen
Air velocity
Application temperature
Response temperature
Ambient temperature
-55 °C ... 75 °C
Storage temperature
-55 °C ... 85 °C
Wavelength
nm
Connection
Sampled Air Temperature
Air humidity
< 95 % (non-condensing)
Air humidity
Ex-category
Ex II 2 G D
Ex. protection
Ex db eb op is IIC T4 Gb, Ex tb op is IIC T96°C Db
Type of protection
IP 66 and IP 67 according to EN 60529

Housing
Type
Material

Color
Weight
Weight
approx. 2,8 kg

Luftfeuchtigkeit
Cable length
m
Maximum sensor length
m
Rückseitige Bodenplatte
mm
Detector specification
EC-type examination certificate
IECEx SIR 07.0085X
Specification

Dimensions
W: 90 mm H: 114 mm D: 156 mm


Declaration of Performance
Approval

Additional information

Substance dependent ranges at standard fire conditions and max. sensitivity: n-heptane, petrol: 65 minnalf of 5 sec. Diesel, JP5, kerosene; 45 m within 5 sec. Ethanol, isopropyl alcohol: 40 m within 5 sec. Methanol: 35 m within 5 sec. Methane, LPG: 30 m within 5 sec. Office paper: 10 min and a half within 5 sec. Polypropylene pellets: 5 m within 5 sec.

Scope of delivery

Stainless steel mounting bracket (782441) and plastic rain cover (782442) are included.
