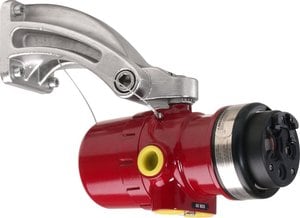

The pressure-proof, fully enclosed infrared flame detector particularly distinguishes itself through reliable operation in difficult conditions. An integrated LED and three relays provide information regarding the state of operation, failure, and alarm. Contamination resistance and heated optics to prevent condensation and formation of ice also allow for external operation. Typical areas of application are turbines, petrochemistry and the automotive industry.Monitoring on the loop and resetting via esserbus transponder 808623. Monitoring of a conventional line via the same transponder. This device requires a separate voltage supply of 24 V DC.
Please note: for mounting of the holder, a 5 and 14 mm Allen key is necessary and is not included in delivery.
Regarding distance please refer to the manual for further information!
Mounting bracket
Screw connection kit (1 x M25 Ex d/3 x blind fittings M25 Ex d)
Service pack (1 x screwdriver/1 x magnet for function test/1 x cleaner for optics)
