Blow off device for pipe system – FAAST series

F-BO-AFE70-2 | Blow off device for pipe system – FAAST series

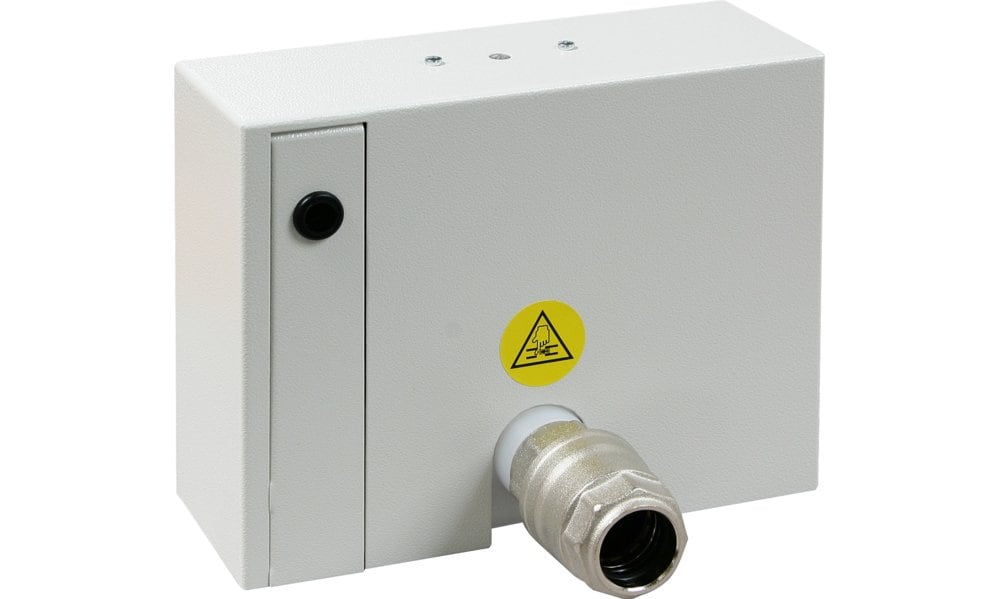

The blow-off device enables the automatic cleaning of the pipes of aspirating smoke detectors, with compressed air. Control takes place via predefined, selectable control cycles, event-controlled with contamination messages or manually via a control input. The solenoid valve controls the compressed air from a storage tank or compressor unit for short-term rinsing of the pipe system and the suction openings.

Part-No.:
F-BO-AFE70-2

Features

  • Compact service unit
  • Preventive or event-controlled blow-out programs selectable
  • Easy integration, even in inventory systems
  • 6 stored, selectable programs for cyclic cleaning runs
  • Control input for manual cleaning cycles
  • Integrated clock module for daytime-dependent cleaning cycles
  • Up to 3700l / min air flow at 7 bar air pressure

Technical Data

Operating voltage
21,6 ... 30 V DC
Contact Ausgänge
Contact Current
Sensoren pro Hub
Sensoren pro Controller
Hubs pro Controller
Angesaugte Lufttemperatur
Länge der Abzweigleitung
Lineare Rohrlänge
Ansaugöffnungen
Operation temperature
Anzahl_der_Relaisausgänge
Indication Output voltage
Nominal frequency
Hz
Rated voltage

Operating voltage
V DC
Operating voltage
Voltage supply
Quiescent current
Quiescent current @ 9 V DC
Quiescent current @ 12 V DC
Quiescent current @ 19 V DC
Quiescent current @ 24 V DC
approx. 8 mA
Ruhestrom @ 28 V DC_comp
Quiescent current @ FACP battery
Quiescent current @ FACP battery

Current consumption
Alarmstrom @ 28 V DC_comp
Current consumption @ 12 V DC
Current consumption @ 24 V DC
Current consumption
Power consumption @ 5 V DC
Power consumption @ 12 V DC
Power consumption @ 24 V DC
Alarm current @ 9 V DC
Alarm current @ 12 V DC
Alarm current @ 24 V DC
Starting current @ 24 V DC
Starting current
Current consumption in the case of failure
Output current
A
Power consumption
Current consumption for ext. devices
A
Battery capacity
Contact load
Contact load relay
Sensitivity
Sound level
Sound level @ 24 V DC
Display
Frequency of flash
Hz
Lighting energy
Range
Connection terminal
Maximum tube length
Area to be monitored
Height to be monitored
Alignment angle
Unempfindlichkeit gegenüber Gebäudebewegungen
Air velocity
Application temperature
Response temperature
Ambient temperature
5 °C ... 50 °C
Storage temperature
Wavelength
nm
Connection
Sampled Air Temperature
Air humidity
< 95 %
Air humidity
Ex-category
Ex. protection
Type of protection
IP 10B

Housing
sheet steel
Type
Material

Color
gray white, similar to RAL 9002
Weight
Weight
approx. 3,2 kg

Luftfeuchtigkeit
Cable length
m
Maximum sensor length
m
Rückseitige Bodenplatte
mm
Detector specification
EC-type examination certificate
Specification

Dimensions
W: 204 mm H: 68 mm D: 160 mm


Declaration of Performance
Approval

Additional information

An external power supply is required for the power supply.

Compressed air supply:

max. permissible overpressure 0,7MPa (7,0bar)

recommended minimum pressure 0,2MPa (2,0bar)

Product Data Sheet

Version: 2024-07

Language:
English
Doc extension:
pdf
