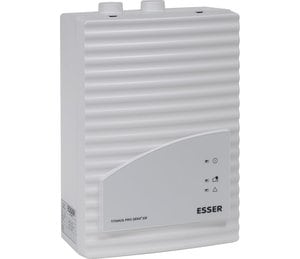

Basic unit TITANUS PRO SENS® EB with silent fan

801521.10.SL | Basic unit TITANUS PRO SENS® EB with silent fan

Same as 801521.10, but premounted SL fan for operation in noise-sensitive areas. With the SL fan, the operating noise volume of the unit is reduced to a level as low as 23 dB (A) depending on ambient conditions.

Part-No.:
801521.10.SL
Approval:
VdS

Features

  • Pre-configured for connecting a DM-TP-xx detector module
  • Optical status display for alarm and fault indication at the front foil
  • Extendable for integrating up to two DM-TP-xx detector modules to connect a second tube
  • Ports for two suction tubes with outside diameter of 25 mm
  • Port for air return tube

Technical Data

Operating voltage
14 ... 30 V DC
Contact Ausgänge
Contact Current
Sensoren pro Hub
Sensoren pro Controller
Hubs pro Controller
Angesaugte Lufttemperatur
Länge der Abzweigleitung
Lineare Rohrlänge
Ansaugöffnungen
Operation temperature
Anzahl_der_Relaisausgänge
Indication Output voltage
Nominal frequency
Hz
Rated voltage

Operating voltage
V DC
Operating voltage
Voltage supply
Quiescent current
Quiescent current @ 9 V DC
Quiescent current @ 12 V DC
Quiescent current @ 19 V DC
Quiescent current @ 24 V DC
max. approx. 275 mA at 9 V fan voltage
Ruhestrom @ 28 V DC_comp
Quiescent current @ FACP battery
Quiescent current @ FACP battery

Current consumption
Alarmstrom @ 28 V DC_comp
Current consumption @ 12 V DC
Current consumption @ 24 V DC
Current consumption
Power consumption @ 5 V DC
Power consumption @ 12 V DC
Power consumption @ 24 V DC
Alarm current @ 9 V DC
Alarm current @ 12 V DC
Alarm current @ 24 V DC
Starting current @ 24 V DC
Starting current
Current consumption in the case of failure
Output current
A
Power consumption
Current consumption for ext. devices
A
Battery capacity
Contact load
Contact load relay
30 V DC/1 A max. 24 W
Sensitivity
Sound level
Sound level @ 24 V DC
Display
Frequency of flash
Hz
Lighting energy
Range
Connection terminal
max. 1,5 mm²
Maximum tube length
Area to be monitored
Height to be monitored
Alignment angle
Unempfindlichkeit gegenüber Gebäudebewegungen
Air velocity
Application temperature
Response temperature
Ambient temperature
-20 °C ... 60 °C
Storage temperature
-25 °C ... 65 °C
Wavelength
nm
Connection
Sampled Air Temperature
Air humidity
< 95 %
Air humidity
Ex-category
Ex. protection
Type of protection
IP20

Housing
ABS plastic
Type
Material

Color
white, similar to RAL 9018
Weight
Weight
approx. 1,35 kg

Luftfeuchtigkeit
Cable length
m
Maximum sensor length
m
Rückseitige Bodenplatte
mm
Detector specification
EC-type examination certificate
Specification
EN54-20

Dimensions
W: 200 mm H: 292 mm D: 113 mm


Declaration of Performance
Approval

Scope of delivery

Pre-configured basic device including esserbus transponder and reset PC board as well as the front foil.

Product Data Sheet

Version: 2024-07
