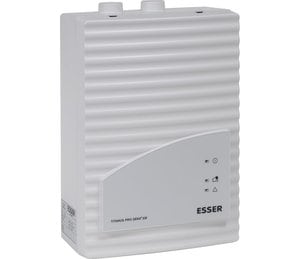

Basic unit TITANUS PRO SENS® EB

Features

Pre-configured for connecting a DM-TP-xx detector module
Optical status display for alarm and fault indication at the front foil
Extendable for integrating up to two DM-TP-xx detector modules to connect a second tube
Ports for two suction tubes with outside diameter of 25 mm
Port for air return tube

Technical Data

Operating voltage: 14 ... 30 V DC
Contact Ausgänge
Contact Current
Sensoren pro Hub
Sensoren pro Controller
Hubs pro Controller
Angesaugte Lufttemperatur
Länge der Abzweigleitung
Lineare Rohrlänge
Ansaugöffnungen
Operation temperature
Anzahl_der_Relaisausgänge
Indication Output voltage
Nominal frequency: Hz
Rated voltage

Operating voltage: V DC
Operating voltage
Voltage supply
Quiescent current
Quiescent current @ 9 V DC
Quiescent current @ 12 V DC
Quiescent current @ 19 V DC
Quiescent current @ 24 V DC: approx. 275 mA (at 9 V fan voltage)
Ruhestrom @ 28 V DC_comp
Quiescent current @ FACP battery
Quiescent current @ FACP battery

Current consumption
Alarmstrom @ 28 V DC_comp
Current consumption @ 12 V DC
Current consumption @ 24 V DC
Current consumption
Power consumption @ 5 V DC
Power consumption @ 12 V DC
Power consumption @ 24 V DC
Alarm current @ 9 V DC
Alarm current @ 12 V DC
Alarm current @ 24 V DC
Starting current @ 24 V DC
Starting current
Current consumption in the case of failure
Output current: A
Power consumption
Current consumption for ext. devices: A
Battery capacity
Contact load
Contact load relay: 30 V DC/1 A max. 24 W
Sensitivity
Sound level
Sound level @ 24 V DC
Display
Frequency of flash: Hz
Lighting energy
Range
Connection terminal: max. 1,5 mm²
Maximum tube length
Area to be monitored
Height to be monitored
Alignment angle
Unempfindlichkeit gegenüber Gebäudebewegungen
Air velocity
Application temperature
Response temperature
Ambient temperature: -20 °C ... 60 °C
Storage temperature: -25 °C ... 65 °C
Wavelength: nm
Connection
Sampled Air Temperature
Air humidity: < 95 %
Air humidity
Ex-category
Ex. protection
Type of protection: IP 20

Housing: ABS plastic
Type
Material

Color: white, similar to RAL 9018
Weight
Weight: approx. 1,35 kg

Luftfeuchtigkeit
Cable length: m
Maximum sensor length: m
Rückseitige Bodenplatte: mm
Detector specification
EC-type examination certificate
Specification: EN 54-20

Dimensions: W: 200 mm H: 292 mm D: 113 mm


Declaration of Performance
Approval

Additional information

The previously required isolator and the reset PCB is no longer required to be fitted to this detector and is no longer available to order. The detector is now fitted as standard with the esserbus alarm transponder which incorporates all of the functions for which these devices provided.

Isolator not included with delivery, can be optionally ordered under Part No. 788612.

Scope of delivery

Pre-configured basic device including esserbus transponder and reset PC board as well as the front foil.

Downloads

Produktdatenblatt

Ausschreibungstext

ESSER Systems
