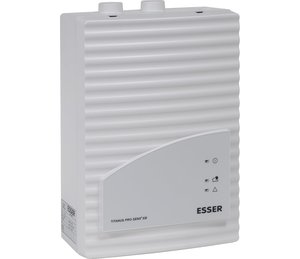

Compact unit TITANUS PRO SENS® EB

801515.10 | Compact unit TITANUS PRO SENS® EB

Active system for the early detection of fires. It serves as room and furnishing protection and can be directly connected to the esserbus/powered loop. The compact aspirating smoke detection system TITANUS PRO SENS® EB is completely supplied with detector module DM-TP-50L. Plug & play operation for fast and simple commissioning through pre-programmed standard functions and pre-configured detector modules.

Part-No.:
801515.10
Approval:
VdS

Features

  • Fire and fault indication directly at the unit and at the FACP
  • Fast commissioning through automatic initializing process and plug & play operation
  • Air flow monitoring for detecting pipe burst or tube blocking
  • Protection against disturbances when implemented LOGIC SENS function is activated
  • Integrated and pre-configured detector module (Part No. 801523.10)

Technical Data

Operating voltage
14 ... 30 V DC
Hochgeschwindigkeitsreaktionszeit
Explosionserkennung
Zulassung für explosionsgefährdete Bereiche
Spektrale Empfindlichkeit
Reaktionszeit_a
Empfindlichkeitsbereiche
Erfassungsbereich
Contact Ausgänge
Contact Current
Sensoren pro Hub
Sensoren pro Controller
Hubs pro Controller
Angesaugte Lufttemperatur
Länge der Abzweigleitung
Lineare Rohrlänge
Ansaugöffnungen
Operation temperature
Anzahl_der_Relaisausgänge
Indication Output voltage
Nominal frequency
Hz
Rated voltage

Operating voltage
V DC
Operating voltage
Voltage supply
Quiescent current
Quiescent current @ 9 V DC
Quiescent current @ 12 V DC
Quiescent current @ 19 V DC
Quiescent current @ 24 V DC
approx. 275 mA (at 9 V fan voltage)
Ruhestrom @ 28 V DC_comp
Quiescent current @ FACP battery
Quiescent current @ FACP battery

Current consumption
Alarmstrom @ 28 V DC_comp
Current consumption @ 12 V DC
Current consumption @ 24 V DC
Current consumption
Power consumption @ 5 V DC
Power consumption @ 12 V DC
Power consumption @ 24 V DC
Alarm current @ 9 V DC
Alarm current @ 12 V DC
Alarm current @ 24 V DC
Starting current @ 24 V DC
Starting current
Current consumption in the case of failure
Output current
A
Power consumption
Current consumption for ext. devices
A
Battery capacity
Contact load
Contact load relay
30 V DC/1 A max. 24 W
Sensitivity
Sound level
Sound level @ 24 V DC
Display
Frequency of flash
Hz
Lighting energy
Range
Connection terminal
max. 1.5 mm²
Maximum tube length
Area to be monitored
Height to be monitored
Alignment angle
Unempfindlichkeit gegenüber Gebäudebewegungen
Air velocity
Application temperature
Response temperature
Ambient temperature
-20 °C ... 60 °C
Storage temperature
-25 °C ... 65 °C
Wavelength
nm
Connection
Sampled Air Temperature
Air humidity
< 95 %
Air humidity
Ex-category
Ex. protection
Type of protection
IP 20

Housing
ABS plastic
Type
Material

Color
white, similar to RAL 9018
Weight
Weight
approx. 1,35 kg

Luftfeuchtigkeit
Cable length
m
Maximum sensor length
m
Rückseitige Bodenplatte
mm
Detector specification
EC-type examination certificate
Specification
EN 54-20

Dimensions
W: 200 mm H: 292 mm D: 113 mm


Declaration of Performance
Approval

Additional information

The previously required isolator and the reset PCB is no longer required to be fitted to this detector and is no longer available to order. The detector is now fitted as standard with the esserbus alarm transponder which incorporates all of the functions for which these devices provided.

Isolator not included with delivery, can be optionally ordered under Part No. 788612.

Scope of delivery

Pre-configured TITANUS PRO SENS® EB basic device including esserbus transponder and reset PC board as well as the TITANUS PRO SENS® EB front foil and pre-configured detector module DM-TP-50L.

Product Data Sheet

Version: 2025-02

Language:
English
Doc extension:
pdf
